Intercom & Security

AIP-JOS-1VW

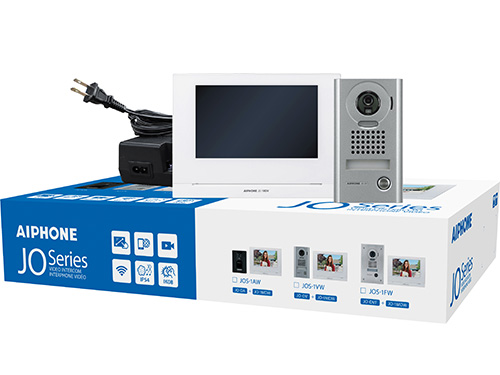

Aiphone – JOS-1VW – JO Colour Kit Video Intercom – WiFi – 1 x JO-1MDW 1 x JO-DV – 1 x Power Supply

$1,229.00 RRP Inc GST

Quantity

AIPhone – JOS-1VW KIT (7inch Colour Touch Screen with Wireless)

SURFACE MOUNT

Mobile-Ready Box Set with Surface-Mount Door Station

(1 x Door, 1 x Master indoor & 1 x Power Supply)

JO-Series-JOS-1VW_400x300

JO Series - JO-DV surface mount video door station

JO Series - JO-1MDW App Enabled 7

PS-1820UL-Main

__________________________________________________________________________________________

Option to add 1 x Expansion Monitor Station

JO-1FD  (Click Here To Find Out More)

JO Series - JO-1FD Standard Expansion Station

Maximum configuration 1 x Door and 2 x Room

___________________________________________________________________________________________

JOW-2D – Two Door Adapter(Click Here To Find Out More)

JOW-2D_400x300

The JOW-2D is an adaptor for the JO Series video intercom system. It allows two video door stations to be used in a standard or app-enabled system. The adaptor has inputs for two JO Series video door stations and outputs to control door release for each of those door stations. When a visitor calls at the door station, his image will be displayed on the inside station(s). The person at the JO-1MDW, JO-1MD, or JO-1FD, answers the call, and if they decide to grant the visitor entry, pushes the door release button to activate the electric lock only at the associated door. If one door station is in use, the call button on the other door station will not activate a call-in.



Use the JOW-2D with JO Series systems that include the JO-1MDW app-compatible master station or the JO-1MD standard master station.

______________________________________________________________________________________________________

The best of both worlds!

This boxed set contains all the equipment needed for an app-enabled entry security system. A call from the zinc die-cast video doorbell rings the on-site monitor and up to eight smartphones or tablets. After answering the call, you can see and speak with your visitor then easily unlock the door with the touchscreen monitor or using the slider button on the app.

Our unique hardwired monitor ensures calls can be answered even when the internet is down or slow and the mobile app ensures you stay connected when you’re on the go. The monitor features built-in memory that can be manually activated to record video from the doorbell or set to automatically record all calls. Expand storage using the MicroSD card slot and view recorded calls on both the monitor and the app.

All this security and convenience is backed by Aiphone’s quality and award-winning customer support. Our commitment to your satisfaction is equivalent to our commitment to supplying quality products. Second to none.

Use Aiphone when you need unparalleled product quality. Use the JO Series when you need on-the-go security and convenience in a single package.

 FEATURES

  • Box set includes all you need for an app capable video intercom system
  • Answer and open your door from the on-site master or your mobile device
  • Connect up to 8 smartphones or tablets per system
  • On-site monitor ensures calls get answered or recorded
  • Store calls with no added fees using onboard memory
  • Adding a MicroSD card to the on-site monitor increase call storage
  • Watch recorded calls from the on-site master or on the mobile app
  • Large 7” touchscreen provides crisp, clear detail of your caller
  • The vandal resistant surface mount video door intercom faceplate is crafted using die-cast zinc
  • Video door intercom automatically activates white LED lights to see clearly at night
  • Replace standard doorbells to add the security of seeing and speaking with visitors

 SPECS

Inside Monitor

Model: JO-1MDW
Video Display: 7″ TFT Touchscreen
Mounting: Surface wall mount or desk mount with MCW-S stand
Internal Call Recording: 10 calls max. @ 10 seconds/call
Memory Expansion: micro SDHC card slot, 32GB max.
Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
Door Release: N/O dry contact, 24V AC/DC, 500mA
Communication style: Handsfree or PTT
Wireless Frequency: 2.4 GHz
Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)

App

Model: Intercom App Type B
Max per system: 8 devices
(EG: Smartphones or WIFI tablets mounted to walls)
Door Release: In app slider activates contacts at JO-1MDW
Available at: Apple App Store℠ or Google Play™

Video Door Station

Model: JO-DV
Power Source: Supplied by inside monitor
Camera: 1/4 inch color CMOS
Mounting: Surface wall mount using a 1 gang electrical box
Faceplate Material: Zinc die cast
Enclosure Rating: IP54
Impact Rating: IK08
Communication style: Handsfree
Operational Temperature: -40°~140° F (-40° ~ 60° C)
Wiring to master: 2-cond., low cap, solid, non-shielded
Max. Wire distance: 165′ (22AWG) 330′ (18AWG)

Power Supply

Model: PS-1820UL
Power Source: AC 100~240V 50/60Hz
Power Output: DC 18V 2A

__________________________________________________________________________________________________________

DOCUMENTATION

AIPhone – JO-Series-Brochure

AIPhone – JO Series Catalog

AIphone – JO-Series-Door-Specification

AIPhone – JO-1FD-Install-Op-Manual

AIPhone – JO-Series-JO-1FD-Specification

AIPhone – JOS-Kit-Install-Op-Manual

___________________________________________________________________________________________________________





SKU AIP-JOS-1VW Categories , , , ,
