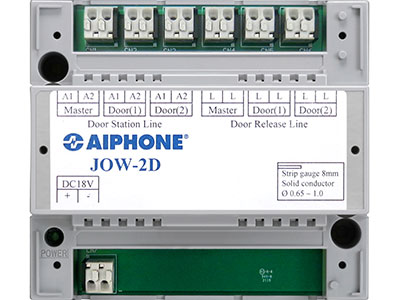

Aiphone – JOW-2D – Door Station Adaptor – Allows 2nd door Station JO Series
$545.70 RRP Inc GST
The JOW-2D is an adaptor for the JO Series video intercom system. It allows two video door stations to be used in a standard or app-enabled system. The adaptor has inputs for two JO Series video door stations and outputs to control door release for each of those door stations. When a visitor calls at the door station, the persons image will be displayed on the inside station(s).
The person at the JO-1MDW, JO-1MD, or JO-1FD, answers the call, and if they decide to grant the visitor entry, pushes the door release button to activate the electric lock only at the associated door. If one door station is in use, the call button on the other door station will not activate a call-in.
Use the JOW-2D with JO Series systems that include the JO-1MDW app-compatible master station or the JO-1MD standard master station.
18V DC (supplied by JO Series master station)
100mA (max), 18mA (standby)
24V DC, 1A (JO-1MDW)
24V DC, 500mA (JO-1MD, JO-1FD)
32° ~ 104° F (0° ~ 40°C)
4-¼” H x 4-13⁄16″ W x 2-⅜” D
