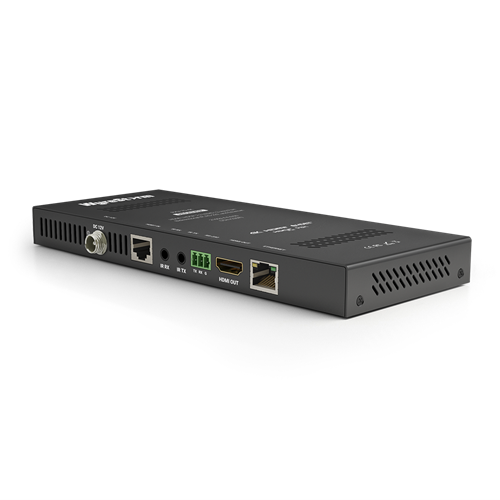

HDBASET RXV 4K:70M 1080P 100M RXV704K WYRESTORM

18GBPS HDMI-OVER-HDBASET™ RECEIVER (2160P 4:4:4/60: 70M/230FT | 1080P: 100M/328FT)

RXV-70-4K

Consumer HDMI content is now breaking through the once comfortable HDBaseT “ceiling” of 10Gbps, with HFR (High Frame Rate) HDR here already in the form of BluRay, Satellite & Cable (HLG) and gaming content. WyreStorm’s H2X matrix platform is ready for this with our new light-compression transmission solution. This receiver is the perfect match for the TX-H2X-VLC modular card.

HDMI2.0 VIDEO: MAXED OUT!
Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology from the matrix to the RXV receiver.

HDBT
The very core of WyreStorm transmission, we’ve embraced HDBaseT technology since 2010. We’re now taking the capabilities of HDBaseT to the next level and supporting video bandwidths in excess of 10Gbps with our lossless compression technology built in to out H2X matrix platform. The RXV-70-4K will output HDMI content at up to 2160p 4:4:4/60.

POWER-OVER-HDBASET
With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.

SLIMLINE DESIGN
As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. But just because this receiver packs a punch doesn’t mean it can’t deliver the small footprint that you’ve come to expect. It also ships complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.

FEATURES

For use exclusively with H2XC matrix and TX-H2X-VLC modular card. Not compatible with MXV matrix range.

• Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
• 4K UHD signals up to 70m/230ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 140m/459ft (1200p 60Hz 16-bit)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz)
• Class A HDBaseT supporting the transmission of video, multichannel audio, Ethernet, bidirectional control and PoH
• Powered remotely via PoH from H2XC matrix
• HDCP 2.2 compatible
• Bidirectional IR supported with both IR TX & RX ports
• RS-232 port for routed 2-way serial communication
• Supports Ethernet pass-through from matrix (Class A HDBaseT transmission only)
• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included

SPECIFICATIONS

• Audio and Video
• Inputs: 1x HDBaseT™ In: 19-pin type A
• Outputs: 1x HDMI Out: 19-pin type A
• Output Video Encoding: HDBaseT™ Class A
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10μs (micro seconds)
• Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

• Video Resolutions (Max)	Video Resolutions	HDMI	Cat6	Cat6a/7
  	1920x1080p @60Hz 12bit	15m/49ft	100m/328ft	100m/328ft
  	1920x1080p @60Hz 16bit	7m/23ft	70m/230ft	100m/328ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	3m/10ft	70m/230ft	100m/328ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	3m/10ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft

• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: HDMI: 600MHz | HDBaseT™: 297MHz

Communication and Control

• HDMI: HDCP 2.2 | EDID | CEC | DVI-D supported with adapter (not included)
• HDBaseT™: HDMI | HDCP 2.2 | EDID | CEC | 1-way PoH to Receiver | Bidirectional IR
• IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™
• RS-232: 1x RS-232: 3-pin Phoenix | Bidirectional over HDBaseT™
• Ethernet: 1x Ethernet: 8-pin RJ-45 Female | Bidirectional over HDBaseT™

Power

• Power Supply: 12V DC 2A
• PoH: 48V 15.4W
• Max Power Consumption: 8.68W

Environmental

• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• StorageTemperature: -20°C to 70°C (-4°F to 158°F)
• Maximum BTU: 29.6 BTU/hr

Dimensions and Weight

• Rack Units | Wall Box: <1U
• Height With | Without Feet: 20.5mm/0.81in | 20mm/0.79in
• Width With | Without Brackets: 193mm/7.6in | 150mm/5.91in
• Depth With | Without Handles: 74.4mm/2.93in | 74.4mm/2.93in
• Weight: 0.4kg/0.88lbs
