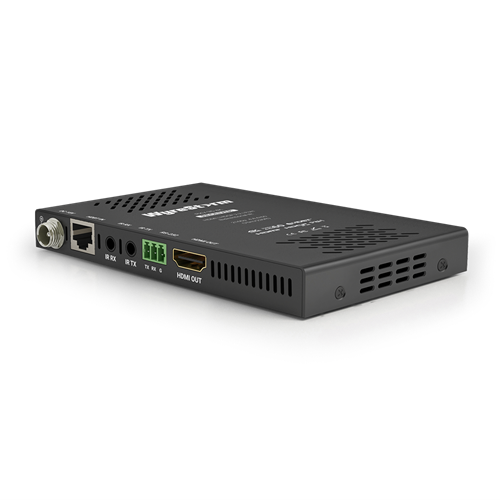

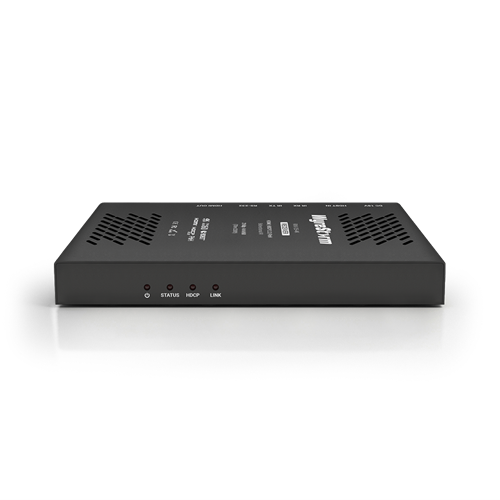

Wyrestorm – WY-RXV354K 4K HDR 4:4:4 60Hz HDBaseT Receiver with Bidirectional IR – RS-232 & Po
$299.00 RRP Inc GST
RXV-35-4K
Consumer HDMI content is now breaking through the once comfortable HDBaseT ‘ceiling’ of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-35-4K is the perfect companion for WyreStorm’s MXV line-up of matrices when distances of under 35 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line.
HDMI 2.0 VIDEO: MAXED OUT!
Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology from the matrix to the RXV receiver.
POWER-OVER-HDBASET
With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.
SLIM BY DESIGN
As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. But just because this receiver packs a punch doesn’t mean it can’t deliver the small footprint that you’ve come to expect. It also ships complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.
HDBASET
The very core of WyreStorm transmission, we’ve embraced HDBaseT technology since 2010. We’re now taking the capabilities of HDBaseT to the next level and supporting video bandwidths in excess of 10Gbps with our lossless compression technology built in to out H2X matrix platform. The RXV-35-4K will output HDMI content at up to 2160p 4:4:4/60.
For use exclusively with Class B 4×8, 6×6 & 8×8 MXV-H2A range of matrix switchers
Video Resolutions (Max) | Video Resolutions | HDMI | Cat6 | Cat6a/7 |
1920x1080p @60Hz 12bit | 15m/49ft | 60m/197ft | 70m/230ft | |
1920x1080p @60Hz 16bit | 7m/23ft | 60m/197ft | 70m/230ft | |
3840x2160p @24Hz 10bit 4:2:0 HDR | 3m/10ft | 35m/115ft | 40m/131ft | |
3840x2160p @30Hz 8bit 4:4:4 | 7m/23ft Input 15m/49ft Output |
35m/115ft | 40m/131ft | |
3840x2160p @60Hz 10bit 4:2:0 HDR | 3m/10ft | 35m/115ft | 40m/131ft | |
4096x2160p @60Hz 8bit 4:2:0 | 7m/23ft | 35m/115ft | 40m/131ft | |
4096x2160p @60Hz 8bit 4:4:4 | 7m/23ft | 35m/115ft | 40m/131ft |
Communication and Control
Power
Environmental
Dimensions and Weight
