RXF-300-4K 18GBPS HDMI-OVER-MULTIMODE FIBER RECEIVER WYRESTORM

18GBPS HDMI-OVER-MULTIMODE FIBER RECEIVER (2160P 4:4:4/60?: 300M/984FT | 1080P: 300M/984FT)

Fiber transmission has long been the holy grail of sending high bandwidth data over long distances but its cost and demanding termination & installation criteria have put many people off. Now with the H2X matrix platform offering perfect lossless transmission of 2160p 4:4:4/60 content over distances of nearly 1000ft, it’s the perfect time to embrace optical transmission and let there be light!

PERFECT OPTICAL TRANSMISSION
With fiber optic cable now more accesible than ever thanks to lower costs and easy field-termination, there’s never been a better time to send lossless 4K HDR content over distances up to 300m/984ft from our H2X matrix. Attenuation and airbourne interfernce are no longer a concern for HDMI content so, go long!

HDMI2.0 VIDEO: MAXED OUT!
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can now be sent using the latest lossless optical transmission technology up to nearly 1000ft. Always looking ahead, WyreStorm can handle both current & future video content technologies.

SLIMLINE DESIGN
As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. WyreStorm’s fiber receiver brings the slim chassis and small footprint that you’ve come to expect and has all the accessories needed to help the integrator complete the install discreetly and efficiently.

HIGH RESISTANCE TO EM OR RF INTERFERENCE
With no electronics or antenna-like copper involved, fiber transmission is perfect for electronically “noisy” environments such as industrial or retail premises. Using optical transmission over 2 multimode fiber cores, the RXV-300-4K is sure to receive a much stronger, more reliable signal.

FEATURES

• Perfect for long distance transmission in environments with high-levels of EM or RF interference
• Reliable optical-HDMI conversion over distance using duplex OM3 cable
• 4K UHD signals up to 300m/984ft (2160p 4:4:4 60Hz 8-bit)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision™ supported up to 30Hz)
• HDCP 2.2 compatible
• Passes IR or RS-232 control signals bidirectionally
• RS-232 port for routed 2-way serial communication

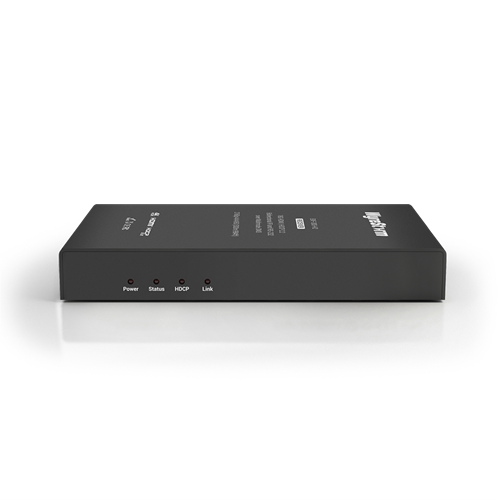

• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included

SPECIFICATIONS

Audio and Video

• Inputs: 1x OM3 In: SFP + Fiber LC Connection
• Outputs: 1x HDMI Out: 19-pin type A
• Video Encoding: TMDS over fiber
• Encoding Data Rate: 10Gbps
• Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

• Video Resolutions (Max)	Video Resolutions	HDMI	MM OM3
  	1920x1080p @60Hz 12bit	15m/49ft	300m/984ft
  	1920x1080p @60Hz 16bit	7m/23ft	300m/984ft
  	3840x2160p @24Hz 10bit 4:2:0 HDR	3m/10ft	300m/984ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	300m/984ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	3m/10ft	300m/984ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft	300m/984ft
  	4096x2160p @60Hz 8bit 4:4:4	3m/10ft	300m/984ft

• Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: 600MHz

Communication and Control

• HDMI: HDMI | HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
• IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over OM3
• RS-232: 1x RS-232: 3-pin Terminal Block -3.5mm | Bidirectional over OM3
• Fiber Multimode: HDMI | HDCP 2.2 | EDID | Bidirectional IR/RS-232

Power

• Power Supply: 12V DC 0.5A
• Max Power Consumption: 3.5W

Environmental

• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• StorageTemperature: -20°C to 70°C (-4°F to 158°F)
• Maximum BTU: 11.94 BTU/hr

Dimension and Weight

• Rack: Units | Wall Box <1U
• Height: With | Without Feet 20mm/0.79in
• Width: With | Without Brackets 150mm/5.91in
• Depth: With | Without Handles 74.4mm/2.93in
• Weight: 0.3kg/0.66lbs
