TOA-PM660U

$149.00 MSRP inc.GST

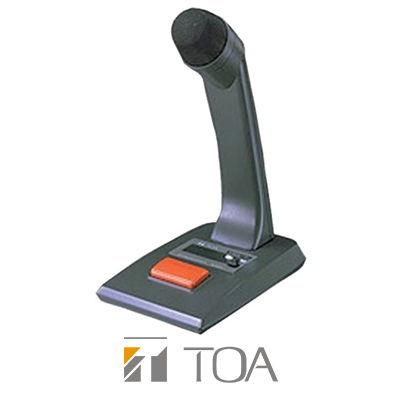

TOA – PM660U – Microphone – Paging 2.5m Lead – 600 Ohm – Cardioid Unterminated



Designed for paging calls and general announcements, the PM-660U desk-top microphone comes with a large talk switch and a lock lever for easy and convenient operation. Its robust anti-vibration construction and balanced output render the microphone resistive to noise. In addition, the PM-660U microphone is equipped with a remote control switch (interlocked with the talk switch) for amplifier power on/off operation or chime activation.

Specification
Type Moving coil microphone
Polar Pattern Unidirectional
Rated Impedance 600 Ω, Balanced
Rated Sensitivity -58 dB (1 kHz, 0 dB=1 V/Pa)
Frequency Response 100 Hz – 10 kHz
Output 4-conductor (2-shielded) cable (2.5 m (8.2 ft)) without plug
Talk Switch 1-push-to-talk switch, 1-locking lever, Short-off type
Remote Control 500 mA or less at 30 V DC
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 95 %RH or less (no condensation)
Finish Microphone head: Zinc plated steel wire, gray baked paint
Main unit: ABS resin, gray
Dimensions 100 (W) × 212 (H) × 150 (D) mm (3.94″ × 8.35″ × 5.91″)
Weight 400 g (0.88 lb) (cord excluded)
