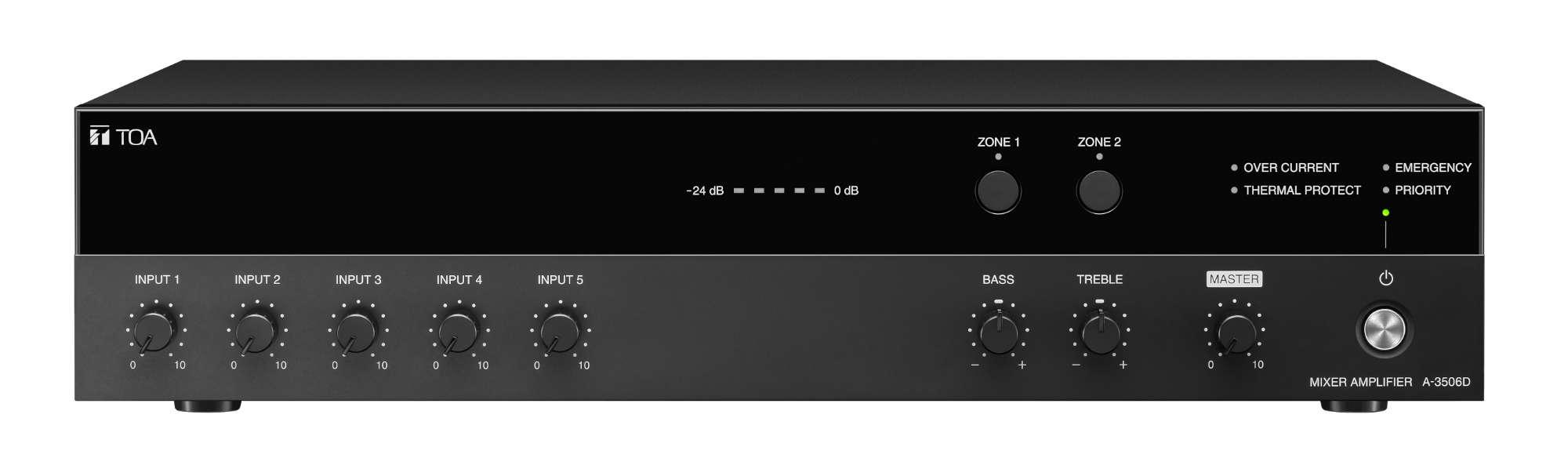

TOA – A 3506D – Mixer Amplifier 60 Watt – 100 Volt – 5 Input 2 Zone – Input 1 Priority
$1,299.00 $1,136.63
The A-3500D series is a PA amplifier with emergency and priority paging, remote zone control. It is equipped with 4 microphone inputs and 1 auxiliary input and 2-channel zone selector, ideal for paging announcement and BGM applications in schools, offices and supermarkets.
Power Source | 100 – 240 V AC, 50/60Hz |
---|---|
Rated Output | 60 W |
Power/Current Consumption | 96 W (Rated output), 40 W (based on EN62368), 200 mA or less (when power switch is OFF) |
Frequency Response | 50 Hz – 20 kHz ±3 dB (1/8 rated output) |
Distortion | 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) |
Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
S/N Ratio | 88 dB or more (Master volume: min.) 76 dB or more (Master volume: max.) 55 dB or more (INPUT 1 – 6) 72 dB or more (INPUT 7) (A-weighted) |
Audio Input | INPUT 1, 2: -60 dB(*1)(MIC) / -20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (5 pins)/ø 6.3 mm phone jack (2P) Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable) INPUT 3: -60 dB(*1), 600 Ω, electronically-balanced, ø 6.3 mm phone jack (2P) INPUT 4: -60 dB(*1)(MIC) / -20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, ø 6.3 mm phone jack (2P) INPUT 5: -20 dB (*1), 10 kΩ, unbalanced, RCA pin jack x 2 PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack |
Audio Output | Speaker out: Low impedance (8 – 16 Ω) / High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 170 Ω), removable terminal block (6 pins) (ZONE 1 / ZONE 2 is selectable, max. 60 W per output) Rec out: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack Line out 1, 2: 0 dB (*1) , 600 Ω, unbalanced, RCA pin jack (Interlock with zone selection is possible) |
Control Input | 2 channels. no-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (5 pins) ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (4 pins) |
Control Output | POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) ZONE CONROL OUT: Open collector output (polarized), withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) |
Indicator | 5-point LED output level meter, Power LED, Priority LED, Emergency LED, Thermal protection LED, Over current protection indicator LED, Zone 1 LED, Zone 2 LED |
Operating Temperature | -10°C to +40°C |
Operating Humidity | 85 %RH or less (no condensation) |
Finish | Panel: ABS resin, black Case: Surface-treated steel plate, black, paint |
Dimensions | 420 (W) × 96.1 (H) × 313.1 (D) mm |
Weight | 4.9 kg |
Accessory | Power Cord (2 m) x 1, Audio Input Removavble Terminal Plug (3.81 mm, 5 pins) x 2, Control I/O Removable Terminal Plug (3.81 mm, 4 pins) x 2, Remote Control Removable Terminal Plug (3.5 mm, 4 pins) x 1, Speaker Out Removable Terminal Plug (5 mm, 6 pins) x 1, Volume Control Cover x 4 |
Option | Rack mounting bracket: MB-25B Perforated panel: PF-013B |
