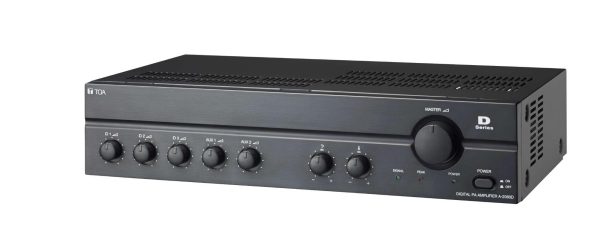

TOA A2240D 240W Class D Mixer Amplifier, 100V only output. 3 x Mic, 2 x Aux, Vox Muting.

Description

TOA A2240D 240W Class D Mixer Amplifier, 100V only output. 3 x Mic, 2 x Aux, Vox Muting.

The TOA A2240D is a high performance mixer power amplifiers suited for broadcasting paging or background music. Suitable for in houses of worship, schools, offices, shops and factories. Equipped with balanced microphone inputs for better isolation from external noise, compared to unbalanced inputs.  It is suitable for AC operation and comes with power output of 240W. It is finished with a scratch and fingerprint-resistant surface for easy handling as well as quick volume control with master volume knob.

A-2000D Series Mixer Power Amplifiers designed to be highly cost effective solutions to the demands of PA applications.

The A-2000 series makes available a wide range of power outputs (A-2030D: 30W, A-2060D: 60W, A-2120D: 120W, A-2240D: 240W), with a frequency response of 50 – 20,000 Hz and distortion under 1%.

Three balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack AUX inputs. High impedance balanced (floating) speaker outputs and unbalanced REC outputs for operational versatility.

Phantom power and Vox muting are available on MIC 1, along with tone control for bass and treble.

Power, signal and peak indicators are provided.

Features

• Wide range of power outputs from 30W to 240W
• 3 microphone inputs, 2 AUX input and 1 recording output
• Speaker output of constant voltage distribution system (100 V)
• Independent tone control of boost and cut type for both high and low frequency
• MIC 1 with phantom power and mute function
• Current limiter to prevent damage due to current overload
• Excess heat limit to protect the transistor and power transformer
• Finished with a scratch and fingerprint-resistant surface for easy handling

Use MB25B (sold separately) for rack mounting.

Note this is the new Class D model with the following differences over the analogue models;

• VOX muting on mic 1
• High (100V line) output only – no low impedance output
• 240VAC operation only

Specifications
