Australian Monitor

AUS-XRS8ODV

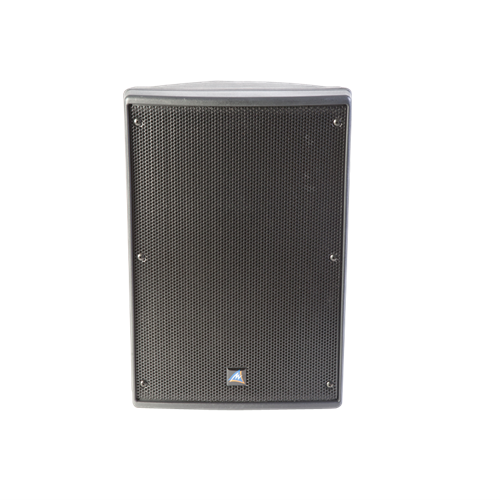

Australin Monitor – XRS8ODV Speaker – Surface – 100 Watt 100 Volt

$485.00 RRP Inc GST

Quantity

XRS8ODV

8 inch Passive Speaker IP44 Rated, 100W, Black



Description



The Australian Monitor XRS passive and powered injection moulded speaker enclosures are renowned for their excellent sound quality, reliability and excellent value for money.

The latest addition to the XRS range is the XRS8ODV which features an IP44 rating for out door use as well as a multi tap constant voltage transformer (taps at 100 W, 50 W and 25 W) for use in larger articulated constant voltage systems such as sporting arenas. The XRS outdoor/voltage speaker range bring the legendary XRS sonic performance to the weather proof and constant voltage speaker market.



Features



• 8″ Woofer, 1.5″ HF compression driver
• 90°x 90° dispersion pattern
• Inbuilt transformer with tappings at 15, 37.5 and 75 watts @ 70V/100V and 8 ohm bypass.
• Frequency response 65 Hz – 18 kHz
• Max SPL 118 dB
• Sensitivity at 1w/1m is 92 dB
• IP44 rated
• Captive flylead
• U bracket included
• 6 x M8 eye bolt points



Specifications



Form Factor Box Max Continuous Power 100W
Tappings 75W-37.5W-15W-8 Ohm Max Program Power 200W
IP Rating IP44 Max Peak Power 400W
EASE Model No SPL 1W/1m 92dB
Powered Passive Max SPL RMS 112dB
Driver Diameter 8″ & 1.5″ Max SPL Peak 118dB
Colour Black Frequency Response (-3dB) 65Hz – 18kHz
Warranty 5 years Dispersion 90 x 90deg
Product Dimensions
(W x D x H)
277mm x 257mm x 400mm Shipping Dimensions
(W x D x H)
355mm x 325mm x 470mm
Net Weight 10 Kg Shipping Weight 12 Kg
GTIN EAN 9323383011465
