$309.00 MSRP inc.GST

Australin Monitor – XRS8B – Speaker Surface – 100 Watt – 8 Ohm Bracket – Black

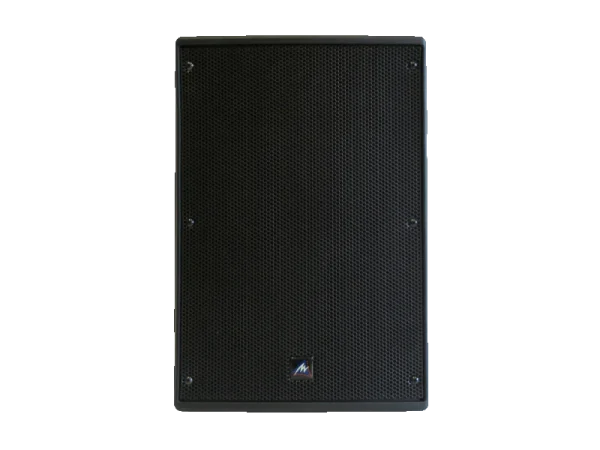

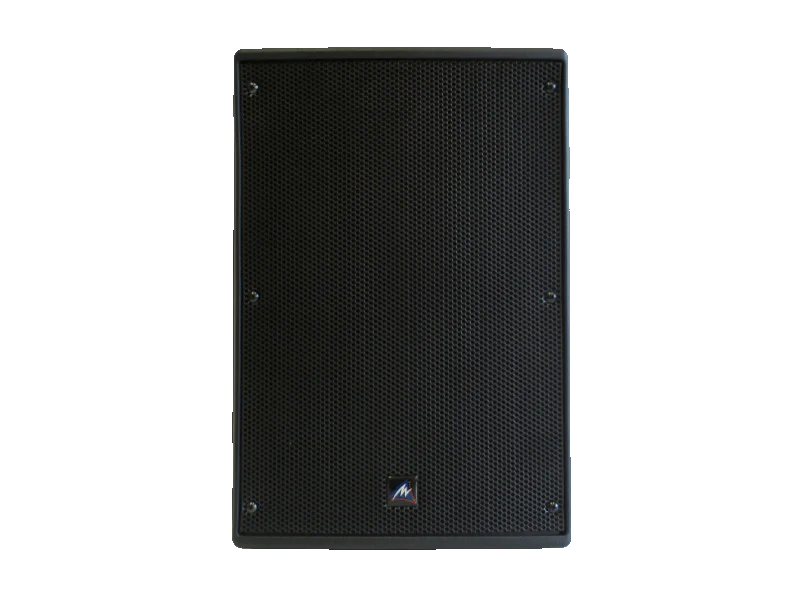

Australian Monitor XRS8 8 inch Passive Speaker 100W, Black

The Australian Monitor XRS8 is a high performance loudspeaker that takes the legendary performance of the XR series and adds a more stylish, contemporary look that is at home in any entertainment environment.

Building on the reliability and sonic quality of the very popular XR speaker series, the Australian Monitor XRS8 8″ woofer and 1.5″ compression driver two-way injection moulded speaker enclosure has more features and new aesthetic to suit live sound reinforcement and permanent installation. From front-of-house to fold back, from the dance floor to background fill, the Australian Monitor XRS8 is designed with flexibility and performance in mind. The Australian Monitor XRS8 is supplied with foldback kit and U bracket.

• 8″ Woofer, 1.5″ HF compression driver
• 90°x 90° dispersion pattern
• 100 Watts RMS
• Impedance 8 Ohms
• Frequency response 65 Hz – 18 kHz
• Max SPL 118 dB
• Sensitivity at 1w/1m is 92 dB
• U bracket included
• 6 x M8 eye bolt points

Includes U mounting bracket. Heavy duty, injection moulded case.


Form Factor Box Max Continuous Power 100W
Tappings 8 Ohm Max Program Power 200W
IP Rating No Max Peak Power 400W
EASE Model Yes SPL 1W/1m 92dB
Powered Passive Max SPL RMS 112dB
Driver Diameter 8″ & 1.5″ Max SPL Peak 118dB
Colour Black Frequency Response (-3dB) 65Hz – 18kHz
Warranty 5 years Dispersion 90 x 90deg
Product Dimensions
(W x D x H)
277mm x257mm x 400mm Shipping Dimensions
(W x D x H)
595mm x 310mm x 460mm
Net Weight 6.5 Kg Shipping Weight 15 Kg (pair)
GTIN EAN 9323383011458


AUS XRS8B Manual

AUS XRS8B Product Brochure
