Australian Monitor

AUS-XRS6ODVB

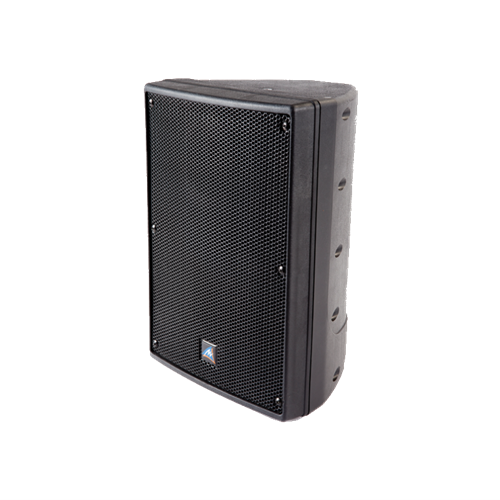

Australian Monitor – XRS6ODVB Speaker – Surface – 60 Watt 100 Volt

$420.00 RRP Inc GST

Quantity

XRS6ODVB

6 inch Passive Speaker IP44 Rated, 80W, Black

Description



The XRS6ODV is a weatherproof 6″ Woofer and 1″ HF driver in our XDS outdoor moulded range of speakers, which comes complete with a U bracket for installation.



Features



• 6″ Woofer, 1″ HF compression driver
• 90°x 60° dispersion pattern
• Inbuilt transformer with tappings at 7.5, 15, 30 and 60 watts @ 70V/100V and 8 ohm bypass.
• Frequency response 95 Hz – 18 kHz
• Max SPL 117 dB
• Sensitivity at 1w/1m is 92 dB
• IP44 rated
• Captive flylead
• U bracket included
• 6 x M8 eye bolt points

Specifications



Form Factor Box Max Continuous Power 80W
Tappings 60W-30W-15W-7.5W-8 Ohm Max Program Power 160W
IP Rating IP44 Max Peak Power 320W
EASE Model No SPL 1W/1m 92dB
Powered Passive Max SPL RMS 111dB
Driver Diameter 6″ & 1″ Max SPL Peak 117dB
Colour Black Frequency Response (-3dB) 95Hz – 18kHz
Warranty 5 years Dispersion 90 x 60deg
Product Dimensions
(W x D x H)		 225mm x 200mm x 325mm Shipping Dimensions
(W x D x H)		 260mm x 260mm x 390mm
Net Weight 7 Kg Shipping Weight 8.2 Kg
GTIN EAN 9323383012714

XRS6ODVB Brochure

XRS6ODVB Manual

SKU AUS-XRS6ODVB Categories , , , ,
