Australian Monitor

AUS-WP4R-W

Australian Monitor – WP4R-W Zonemix Wallplate – Rotary Encoder Four Programmable Buttons – White

$250.00 RRP Inc GST

Quantity

WP4R-W

Remote source and volume control White



Description

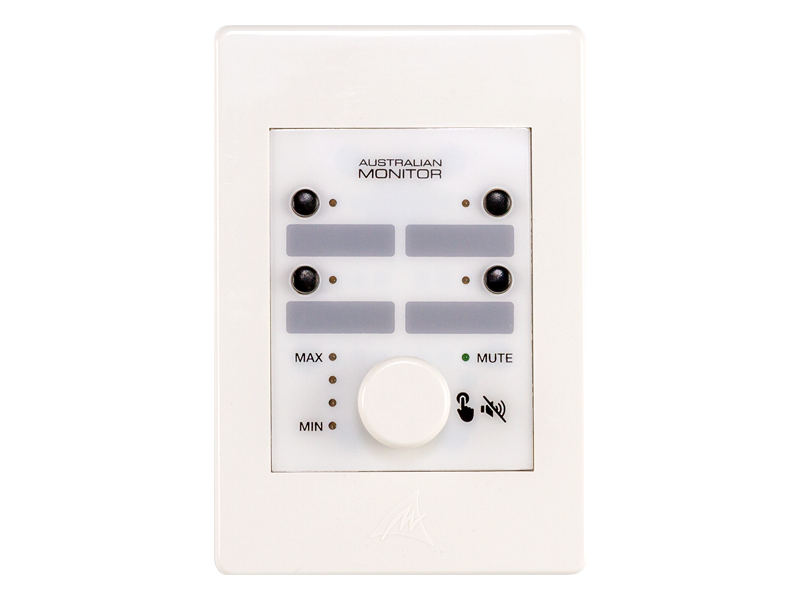

The WP4R wall panel is a 4 button controller with volume control knob for use with the ZONEMIX system.

Each button can be configured in software to provide a wide range of actions including source selection, volume control, muting, preset activation and more.

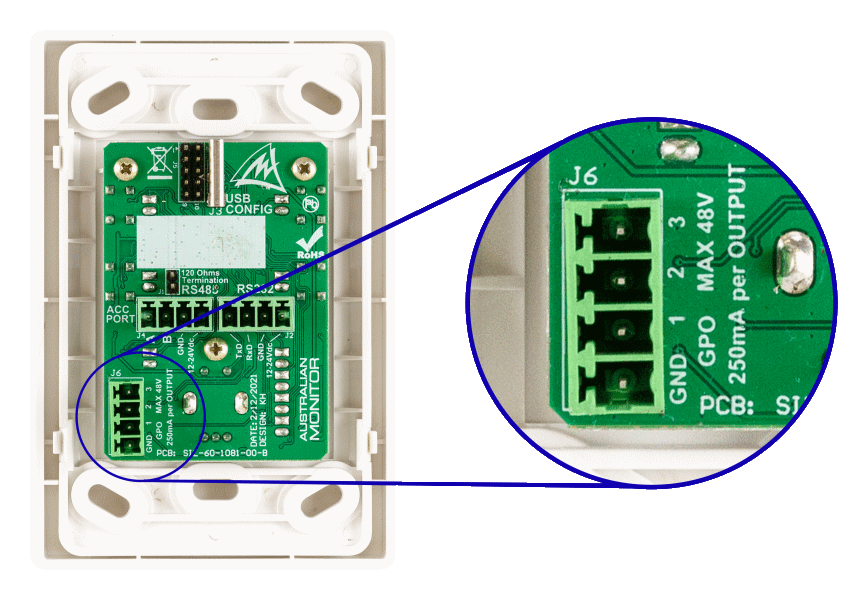

The 3 rear general purpose outputs can be connected to external systems requiring logic control, for example a projector screen.

The WP4R has LED button status indicators, ample button label space and is connected to the ZONEMIX system via Cat5 cabling.

The wall panel can also be optionally color customized using HPM® VIVO™ cover plates to create a unique look for each installation.



Features



• 4 programmable buttons and dedicated volume control knob with mute push button
• 3 rear general purpose outputs
• Euro block cable termination
• Customizable color scheme using HPM® VIVO™ cover plates
• Also available in Black, WP4R-B

Specifications



Zones N/A Paging Stations Connected N/A
Program Inputs N/A Paging Station P/N N/A
Local Inputs N/A Remote Source Control N/A
Tones N/A Mounting Wall
Input Voltage 24VDC Warranty 5 years
Product Dimensions
(W x D x H)
Shipping Dimensions
(W x D x H)
156mm x 132mm x 101mm
Net Weight Shipping Weight 0.2 Kg
GTIN EAN 9323383020399
