Australian Monitor

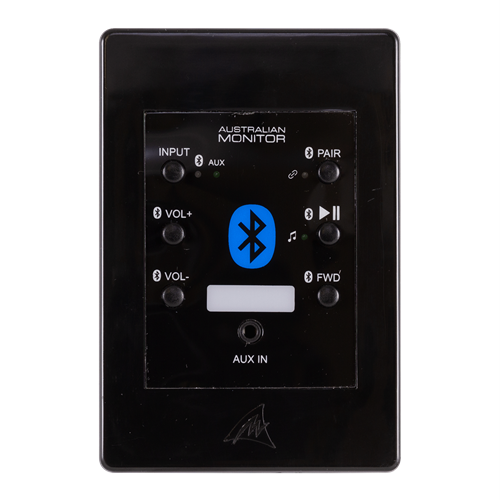

Australian Monitor – WPBT-B Zonemix Wallplate – Bluetooth Assignable Name and PIN – Black

$305.00 RRP Inc GST



Bluetooth® Audio Receiver Black




The WPBT is a programmable Bluetooth® audio receiver and auxiliary input wall panel. Featuring Bluetooth pairing and media controls as well as a source selector.

Audio can be configured to output either stereo or mono balanced audio which can be integrated into any audio system.

The WPBT can be programmed via a USB-C connector and Bluetooth PC Control Software. The software allows the customization of broadcast name, PIN number, security features and output mode.

An optional WP-BREAKOUT box can provide power to the WPBT and convert the audio to unbalanced audio.




• Bluetooth® v5.1 Audio Receiver
• Auxiliary 3.5mm Input Socket
• Programmable name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector
• Dedicated Bluetooth® media controls
• Stereo or mono balanced audio output
• Euro block cable termination
• Customizable color scheme using HPM® VIVO™ cover plates
• Also available in White, WPBT-W




Output Channels Stereo or Mono Frequency Response N/A
Audio Formats Balanced Audio THD+N < 0.1%
Input Voltage 15-24Vdc Signal to Noise Ratio > 80dBA
Mounting Wall FM Frequencies N/A
Warranty 5 years DAB+ Frequencies N/A
Product Dimensions
(W x D x H)
121mm x 82mm x 33mm Shipping Dimensions
(W x D x H)
156mm x 132mm x 101mm
Net Weight 85 grams Shipping Weight 0.2 Kg
GTIN EAN 9323383020511
