Australian Monitor

AUS-WP-BREAKOUT

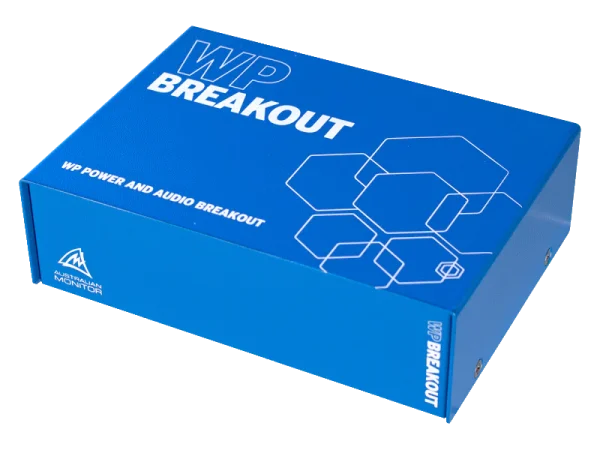

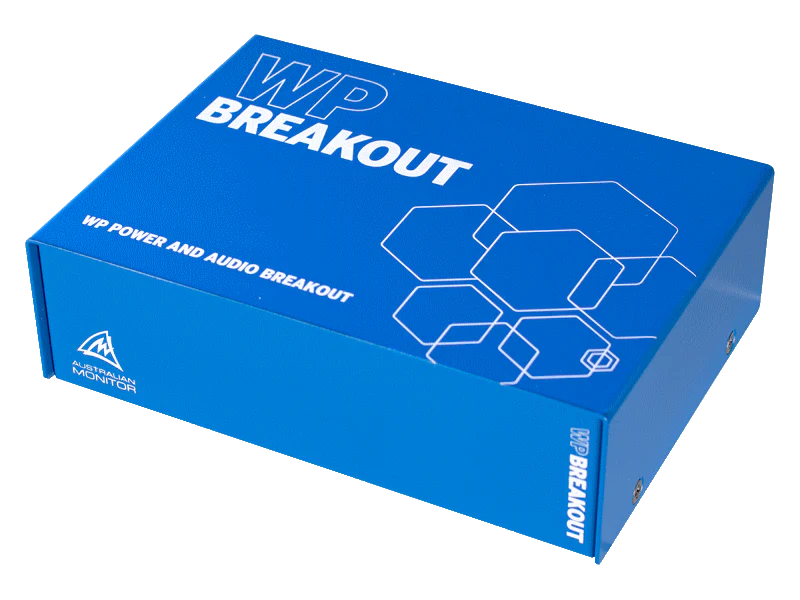

Australian Monitor – BREAKOUT WPBT and Breakout Audio Accessory Power Box

$205.00 RRP Inc GST

Quantity

WP-BREAKOUT

Wall Panel Breakout Power and Audio



Description



The WP-BREAKOUT is an accessory box to easily provide power and break out the audio from up to two audio wall panels.

24V is provided to the wall panels and the wall panel balanced audio is converted into unbalanced audio for connection into any audio system.

Multiple WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.



Features



• Supports the WPBT and WPML Wall Panels
• Provides 24V power to wall panels
• Converts wall panel balanced audio to unbalanced audio
• Rear panel gain adjustment
• Supports up to two wall panels
• Power output to daisy chain up to 15 WP-BREAKOUT units from one power supply



Specifications



Function Wall Panel Power and Audio Breakout Features Level control
Input RJ45 Output RCA
PSU Input Voltage 100-240Vac 50-60Hz Product Input Voltage 15VDC
Colour Blue Warranty 5 years
Product Dimensions
(W x D x H)		 144mm x 124mm x 47mm Shipping Dimensions
(W x D x H)		 246mm x 126mm x 62mm
Net Weight Shipping Weight 0.7 Kg
GTIN EAN 9323383020498

________________________________

WP-BREAKOUT-Manual

________________________________

SKU AUS-WP-BREAKOUT Categories , , , ,
