Australian Monitor MYMDABCD DAB+FM Tuner and CD Player USB, SD Card and Bluetooth (AUS-MYMDABCD)

Australian Monitor – MYMDABCD CD/MP3 player with USB and SD port and DAB/FM tuner with Bluetooth in

$1,020.00 RRP Inc GST

Quantity

AUSTRALIAN MONITOR MYMDABCD

Description

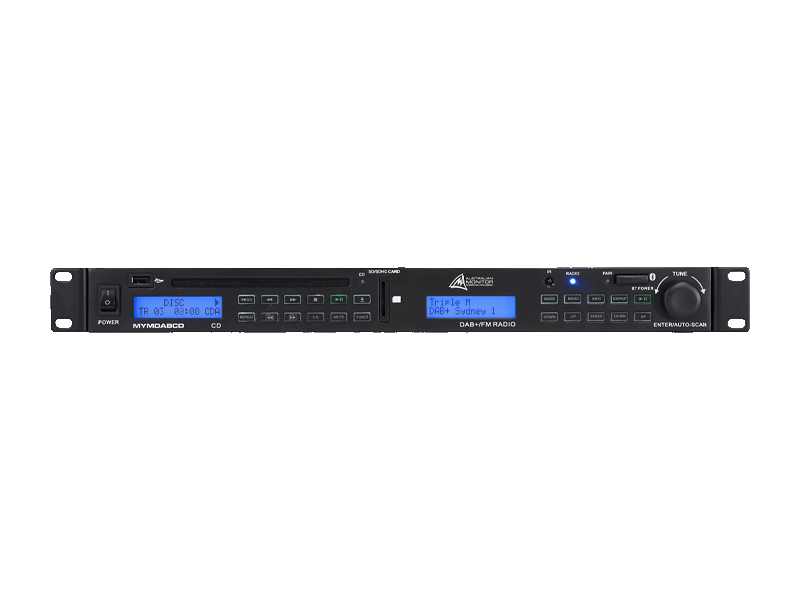

The Australian Monitor MYMDABCD is a 1RU program source combining a programmable CD player, DAB+ / FM tuner and Bluetooth Module.

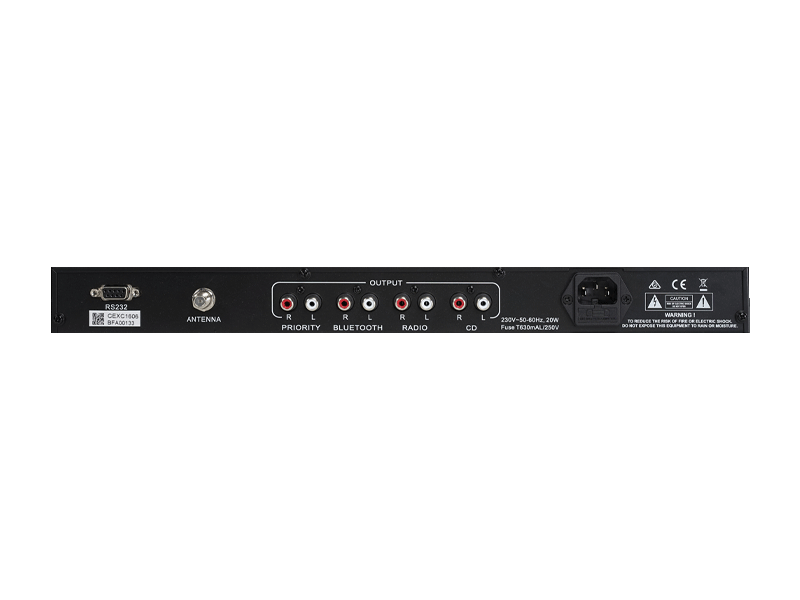

In addition, there is a USB and SD card input which supports MP2, MP3, WAV, WMA formats playback. The product contains a discrete stereo output for the CD, Radio and Bluetooth as well as a priority output.

The MYMDABCD can be controlled via IR or the RS-232 serial port for comprehensive third party control.



Features



• 1RU dual program source
• MP3-compatible CD player
• Bluetooth audio receiver
• USB and SD card playback
• Up to 20 tracks programmable on CD player
• DAB+ and FM tuner
• Discrete stereo outputs for each module
• Priority stereo output
• IR control
• RS-232 control

Individual and priority outputs. Includes infrared remote for CD/MP3 player. Now with RS232 control.



Specifications



Output Channels 1 DAB+ / 1 CD / 1 Bluetooth / 1 Priority Frequency Response 20Hz – 20kHz
Audio Formats PCM/MP2/MP3/WAV/WMA THD+N < 0.2%
Input Voltage 230Vac 50-60Hz Signal to Noise Ratio CD > 94dB – DAB > 50dB – Bluetooth > 60dB
Mounting 1RU FM Frequencies 87.5 – 108 MHz
Warranty 5 years DAB+ Frequencies 174.928 – 239.2 MHz
Product Dimensions
(W x D x H)		 482mm x 250mm x 44mm Shipping Dimensions
(W x D x H)		 531mm x 365mm x 111mm
Net Weight 4 Kg Shipping Weight 5.5 Kg
GTIN EAN 9323383019270

_________________________________

MYM-Manual

MYM-Brochure

MYM-Excel-Serial-Test-Application

_________________________________

SKU AUS-MYMDABCD Categories , , ,
