HDBASET CARD H2X MATRIX TXH2XVLC WYRESTORM

18GBPS HDMI-OVER-HDBASET™ MODULAR CARD FOR H2X MATRIX WITH AUDIO DSP (2160P 4:4:4/60: 70M/230FT | 1080P: 100M/328FT)

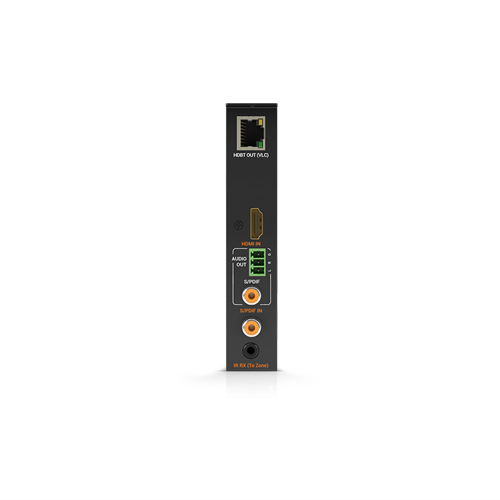

TX-H2X-VLC
Experience HDBaseT transmission turned up to 11 with WyreStorm’s new 18Gbps HDMI solution. Never one to shy away from embracing new technology, we’ve been sending lossless native 24Hz HDR-10 content over HDBaseT since 2016. Now though, content is going above the capability of HDBaseT with HFR (High Frame Rate) HDR here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. WyreStorm’s H2X matrix is ready for this with our new light-compression transmission solution.

HDMI2.0 VIDEO: MAXED OUT!
Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology.

FEATURE-RICH SIGNAL EXTENTION
We shipped our first HDBaseT™ matrix in Spring 2011, less than a year after the formation of the HDBaseT™ alliance. We haven’t stopped since then, constantly evolving our products to suit the offerings from the market. Our current matrices are more powerful than ever, offering 4K HDR, Control, Ethernet, Power and support for Dolby Atmos & DTS:X, over just a single UTP cable.

POWER-OVER-HDBASET
With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.

ON-BOARD AUDIO DSP
No two rooms or even installations are the same. That’s why we’ve coupled to each audio zone output; a powerful audio DSP, which allows an integrator to have complete control over the audio configuration. Volume control, 10-band equalizer, level trim and variable delay can all be set per zone for a truly customized room-by-room balance.

Use only with RXV-70-4K for 70m/230ft transmission of 2160p 4:4:4/60. Not compatible with RXV-70-4K-G2 model

• 18Gbps HDMI input
• Visually Lossless Compression HDBaseT Output – Transmitting the full 18Gbps bandwidth that the current version of HDMI is capable of producing, which includes video, audio, control and power up to 70m/230ft of 2160p 4:4:4/60 and 100m/328ft of 1080p using VLC light-compression technology
• Stereo Audio Output – Offering stereo audio breakout of a zone with a 3-pin phoenix connector for analog audio
• S/PDIF output supporting 5.1 audio content de-embedded from sources or ARC from connected zones
• S/PDIF Audio Input – Another way to inject digital audio to take advantage of the H2X platform’s powerful audio matrix and DSP.
• IR RX – Allows control signals to be sent to the sink device

SPECIFICATIONS

Audio and Video

• Inputs:
  • 1x HDMI In: 19-pin type A
  • 1x S/PDIF In: S/PDIF Coaxial Digital
• Outputs:
  • 1x Optical Out: SFP+
  • 1x S/PDIF Out: S/PDIF Coaxial Digital
  • 1x Audio Out: 3-pin Phoenix
• Output Video Encoding: HDBaseT™ Class A
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10μs (micro seconds)
• Audio Formats:
  • S/PDIF: 2ch PCM | Multichannel: Up to 5.1 DTS and Dolby Digital
  • HDMI: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

• Video Resolutions (Max)	Video Resolutions	HDMI	Cat6	Cat6a/7
  	1920x1080p @60Hz 12bit	15m/49ft	100m/328ft	100m/328ft
  	1920x1080p @60Hz 16bit	7m/23ft	70m/230ft	100m/328ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	3m/10ft	70m/230ft	100m/328ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	3m/10ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft

• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: HDMI: 600MHz | HDBaseT™: 297MHz

Communication and Control

• HDMI: HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
• HDBaseT™: HDMI | HDCP 2.2 | EDID | CEC| 1-way PoH to Receiver | Bidirectional IR
• IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | To Receiver over HDBaseT™
• RS-232: From Matrix – No Connection on card | Bidirectional over HDBaseT™
• Ethernet: From Matrix – No Connection on card | Bidirectional over HDBaseT™
• ARC (Audio Return Channel): Returns audio from displays built-in applications via ARC HDMI Output over OM3 (Requires ARC or SCL Receiver)

Power

• Power Supply: Internal to Matrix
• PoH: 48V 15.4W
• Max Power Consumption: Matrix Dependent

Environmental

• Operating Temperature: Matrix Dependent
• StorageTemperature: Matrix Dependent
• Maximum BTU: Matrix Dependent

Regulatory

• Safety and Emission Matrix Dependent
