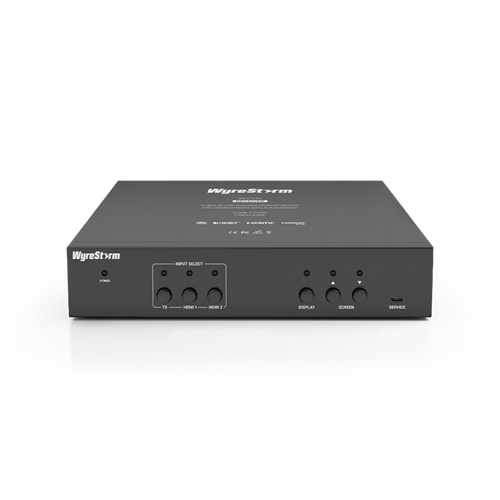

3-INPUT UHD SWITCHING HDBASET RECEIVER WITH USB HOST DEVICE PORTS & 4K: 100M

4K HDBASET RECEIVER WITH USB & LOCAL INPUTS

SKU: SW-515-RX

Powerful, next generation HDBaseT receiver compatible with WyreStorm’s presentation switcher platform, perfect for corporate meeting and classroom environments. Automatically switches between a remote source sent over HDBaseT and 2 local HDMI sources, all with USB device extension. CEC triggering and 3rd party device relays further contribute to a superior and autonomous presentation experience.

• 4-INPUT SWITCHING RECEIVER
  A flagship in our PRO range and a first for our Synergy switchers, the SW-515-RX brings features of the H2 and PRO products into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Proudly carrying the H2 moniker, it will support 4K content and even HDCP2.2 protected content.
• ADDITIONAL RECEIVER INPUTS
  When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.
• TWO CONDITION-BASED RELAYS BUILT INTO RECEIVER
  With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.
• USB 2.0 PASS-THROUGH
  HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.

FEATURES

• HDBaseT receiver with switching inputs for education or corporate meeting rooms
• Automatic or manual switching between a remote HDBaseT source or 2 local HDMI’s
• Bidirectional USB2.0 for connection of webcams, smart touchscreens and microphones
• Automatic or manual CEC triggering for compatible connected screens or projectors
• Condition based relays triggered on source presence
• Supports source content up to 4K/60 4:2:0 with HDCP 2.2

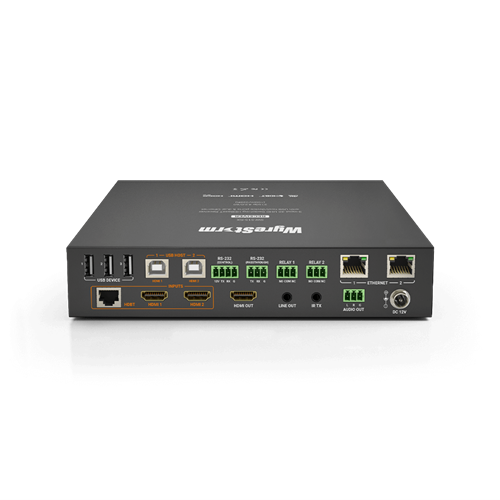

SPECIFICATIONS

AUDIO AND VIDEO

• Inputs:
  • 2x HDMI In: 19-pin type A
  • 1x HDBT In: 8-pin RJ-45 Female
• Outputs:
  • 1x HDMI Out: 19-pin type A
  • 1x Audio Out: 3-pin Phoenix
  • 1x Line Out: 3.5mm (1/8in) TRS Stereo
• Output Video Encoding:    HDBaseT™ Class C
• Encoding Data Rate:    9.2Gbps
• End to End Latency:    10μs (micro seconds)
• Audio Formats:    2ch Analog/PCM | Multichannel: LPCM

• Supported Standards:    DCI | RGB
• Maximum Pixel Clock:    297MHz

COMMUNICATION AND CONTROL

• HDMI:    HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
• HDBaseT™:    HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
• RS-232:    1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
• Ethernet:    2x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT™
• IR:    1x IR TX: 3.5mm (1/8in) TS Mono
• Relays:    1x Screen UP: 3-pin Phoenix | 1x Screen DWN: 3-pin Phoenix
• USB:    2x USB Host: USB-B | 3x USB Device: USB-A

POWER

• Power Supply:    12V DC 2A
• Max Power Consumption:    16.25W

ENVIRONMENTAL

• Operating Temperature:    0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
• Storage Temperature:    -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
• Maximum BTU:    55BTU/hr
• Rack Units | Wall Box:    <1U
• Height With | Without Feet:    44.5mm/1.76in | 42mm/1.66in
• Width With | Without Brackets:    263mm/10.36in | 220mm/8.67in
• Depth With | Without Handles:    148.7mm/5.86in | 148.7mm/5.86in
• Weight:    0.95kg/2.09lbs
