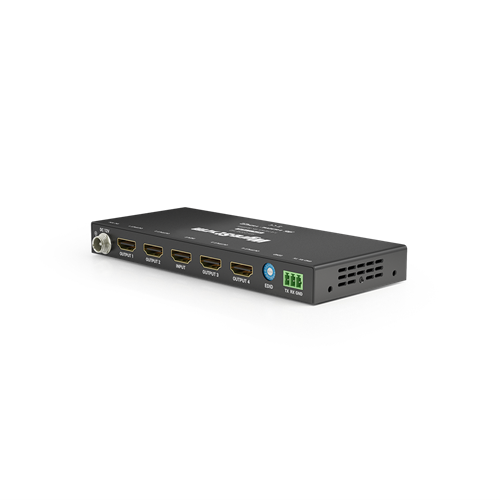

Wyrestorm – WY-SP0104H2 4K/UHD 1×4 HDMI splitter; SUPPORTS: 4K – HDMI 2.0 – HDCP2.2.
$349.00 RRP Inc GST
SP-0104-H2
With support for 4K/HDR resolutions, HDCP 2.2, and HD multi-channel audio formats, this four-output splitter allows for simple, reliable distribution of a single HDMI source to multiple duplicate displays. Additionally, the compact chassis makes it perfect for environments where unobtrusive installation is important.
4K UHD, 4-WAYS
With support for 4K/60 4:4:4 and a powerful backplane capable of “fully-loaded” 18Gbps distribution to four outputs, the SP-0104-H2 is the perfect way to achieve multi-point, single source distribution.
HDCP2.2 COMPLIANCE
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted to protect it from being illegally duplicated. Being part of the H2 product family, the SP-0104-H2 supports the multi-point distribution of this content over HDBaseT™.
EDID ADJUSTMENT
With multiple EDID tables to choose from, the SP-0104-H2 comes with various EDID options to optimise sink-source communication. Built-in EDID’s allow a defined timing signal to be selected or copy mode from port #1 means that a connected screen can be used as the master.
SLIM FORM-FACTOR
Coming complete with mounting brackets, the SP-0104-H2 can be both wall & surface mounted. The 18mm chassis allows for unobtrusive installation.
AUDIO AND VIDEO
Video Resolutions (Max) | Version 1 | Version 2/3 |
1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft) | ||
3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft) | ||
1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft) | 3840x2160p @24Hz 4:2:0 HDR 10bit (15m/49.2ft) | |
3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft) | 4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft) | |
4096x2160p @60Hz 8bit 4:2:0 (15m/49.2ft) | 4096x2160p @60Hz 8bit 4:4:4 (3m/9.8ft) |
Communication and Control
Power
Environmental
Dimensions & Weight
Regulatory
