RX-700 4K HDR 4:4:4 HDBASET 2.0 RECEIVER WITH USB INPUTS ETHERNET & POH 4K: 100M

100M 4K60 HDBASET DSC RECEIVER WITH USB

SKU: RX-700

Utilizing the best in HDBaseT technology, the RX-700 extends 5-Play functionality to your display device over 100m/328ft of Cat 6 cable.

Using DSC (display stream compression) the RX-700 can support HDMI video up to 2160p 4:4:4 at 60Hz without any visual loss in quality or latency. With HID’s and data transfer in mind, the RX-700 supports data transmission of USB 2.0 devices like HD webcams, smart whiteboards and flash drives alike.

• CLASS C HDBASET
  Featuring the powerful HDBaseT 2.0 specification, UHD video & audio, Ethernet, control, USB and PoH are sent over distances of 100m/328ft. VESA recognized DSC at the point of transmission means lossless compression for HDMI & DP++ signals up to 18Gbps.
• USB 2.0 PASS-THROUGH
  HDBaseT™ 2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities of 190Mbps for webcams or USB peripherals.
• HDMI 2.0 MAXED OUT!
  Sporting an 18Gbps HDMI input, the RX-700 can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz, along with multichannel audio up to DTS:X and Dolby Atmos.
• DEDICATED AUDIO LANE
  Running in parallel to and completely separate to the HDMI signal within the HDBaseT link, the RX-700 can also support the bi-directional transmission of 2 separate stereo audio feeds, to and from the RX-700.

FEATURES

• HDBaseT Receiver supporting:
  • Content up to 4K/60 4:4:4 & RGB 8-bit
  • The latest HDR standards, including HDR-10, HLG and Dolby Vision at 30Hz
  • HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
  • 2160p 4:4:4 or 4:2:2 12-bit HDR content from a source to a display or projector using HDBaseT up to 100m/328ft
• Automatically activated DSC lossless compression handles HDMI content up to 17.8Gbps
• HDMI output supports bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• Bidirectional USB 2.0 passthrough offering 190Mbps transfer and HID extension
• Features 4 USB device ports
• 10/100 Ethernet port for extension of LAN from TX
• Bidirectional audio lane separate to HDMI signal sends and receives analog audio signals at either end (requires supporting TX device)
• Bidirectional IR, RS-232 and CEC communication
• DIP Switch selection for direction of USB control, long cable mode and firmware update
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)

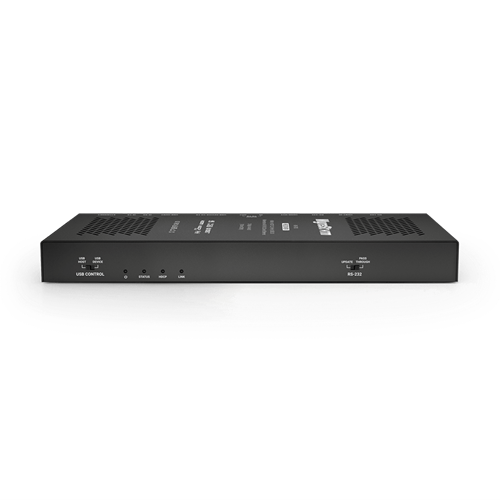

• LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and transmission link
• 2-way PoH (Power over HDBaseT) enables the receiver to be remotely powered by the transmitter or power a transmitter
• Locking DC power jack
• 12v DC PSU with US, UK, EU & AU Power cables included
• Mounting brackets included

SPECIFICATIONS

TRANSMISSION

• Transmission Encoding:    HDBaseT Class C | PAM16 Encoding
• End to End Latency:    10µs
• Maximum Transmission Bit Rate:    10.2Gbps

VIDEO

• HDMI:    (v2.0b) TMDS | 600MHz Maximum with DSC (Display Stream Compression)

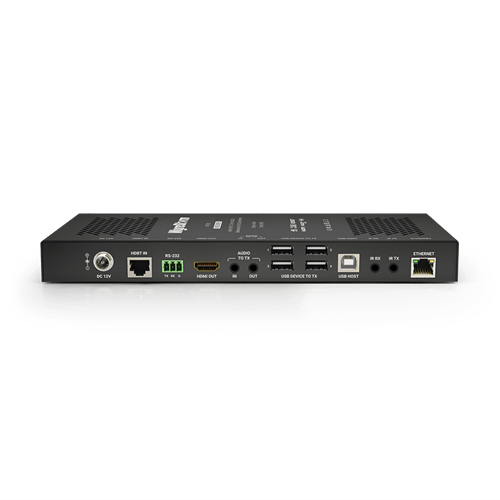

• Input:    1x HDBT In: 8-pin RJ45
• Output:    1x HDMI Out: 19-pin Type A Female
• Maximum Pixel Clock:    HDMI: 600MHz | HDBaseT: 340MHz

• Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
• Supported Standards:    DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

AUDIO

• Inputs:    1x Audio In: 3.5mm (1/8in) TRS Stereo 2ch audio over HDBaseT | 1-way to TX
• Outputs:    1x Audio Out: 3.5mm (1/8in) TRS Stereo 2ch audio over HDBaseT | 1-way from RX
• Audio Formats:    2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos
• Maximum Sampling Rate:    192KHz
• Maximum Audio Channels:    32
• Audio Return Channel (ARC):    Not Supported

COMMUNICATION AND CONTROL

• USB:
  • 1x Type B (host) | 4x Type A (device)*
  • USB direction must be set using switch before operation
  • USB hub compatible | Maximum: 7 devices, 23 endpoints
  • Maximum uplink speed: 190Mbps
  • *USB direction must be set using switch before operation
• IR:    1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono
• RS-232:    1x RS-232: 3-pin Phoenix
• HDCP:    Pass-Through, 2.3 Supported
• EDID:    Pass-Through, RX > TX
• Ethernet:    1x Ethernet: 8-pin RJ-45 Female | Bidirectional over HDBaseT | 100Mbps Supported
• Consumer Electronics Control (CEC):    One-way display trigger from TX
• Auto Low Latency Mode (ALLM):    Supported
• Variable Refresh Rate (VRR):    Supported

POWER

• Power Supply:    18V DC 3A
• Max Power Consumption:    10W
• Power-over-HDBaseT (PoH):    Supported, 2-way

ENVIRONMENTAL

• Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
• Storage Temperature:    -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
• Maximum BTU:    2.93 BTU/hr

DIMENSIONS & WEIGHT (CONNECTOR HOUSING)

• Installation:    Wall mounted | Free standing
• Height:    25mm/0.98in
• Width:    25mm/9.46in
• Depth:    90mm/3.54in
• Weight:    0.62kg/1.36lbs
