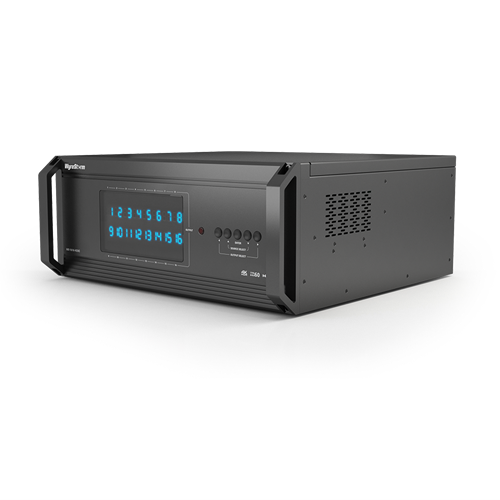

16X HDBT MATRIX CUSTOM CHASSIS MX1616H2XC WYRESTORM

16 SLOT 18GBPS 4K HDR MODULAR MATRIX SWITCH CHASSIS

MX-1616-H2XC
Because the H2X platform packs such a big punch with its standalone version, it wouldn’t be sensible to not offer a modular version. Much like the 2K 16×16 modular matrix, WyreStorm takes custom AV distribution and control to new heights with the H2XC platform.

The H2XC platform gives integrators the utmost in switching and flexibility; for large projects that demand the latest in 4K HDR technology, while giving the integrator the freedom to choose exactly what goes into its chassis, making a perfect fit for the install. Fully utilizing the matrix, not your wallet.

16-SLOT UHD-READY MATRIX

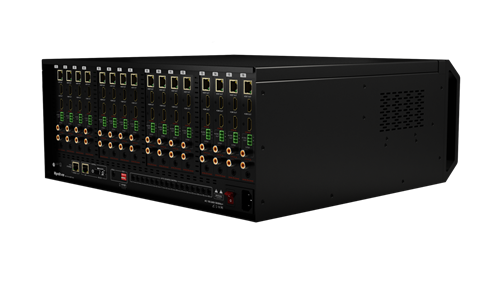

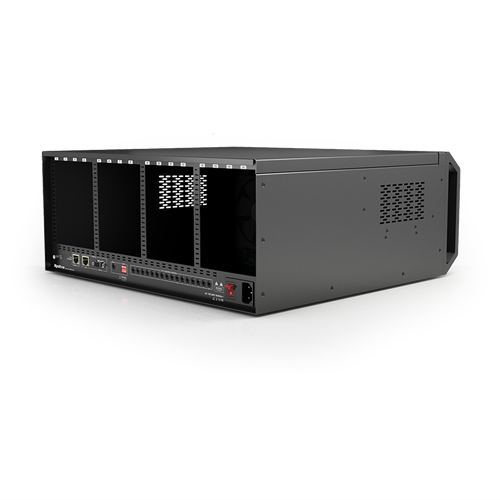

This 16×16 custom matrix chassis is built to your custom specification from a range of TX-H2X transmission cards, allowing hundreds of variations at your disposal.

18GBPS OVER COPPER CABLE
The optional TX-H2X-VLC transmission card now allows the powerful ability to pass the full bandwidth required of HDMI 2.0 over long distances via HDBaseT™ by utilizing Variable Compression technology over a single Cat6 and higher cable.

UP TO 48 AUDIO SOURCE INPUTS
The integrated digital audio matrix can manage up to 48 multi-channel sources, which is made up of audio from the connected HDMI or remote HDBaseT™ sources, separate audio-only devices via S/PDIF and multi-channel ARC from HDBaseT™ zones.

THE CENTER OF YOUR INFRASTRUCTURE
The optional TX-H2X-HDBT input card allows source devices to be de-centralized and sent remotely back to the head-end. A large switching eco-system can be created using WyreStorm’s huge range of HDBaseT™ transmission devices.

• Populate with personal selection of multi-format transmission card options including:
  • HDBaseT™ output supporting 4K/60 4:4:4 or 12-bit HDR to 70m/230ft and 1080p to 140m/459ft
  • Fiber output supporting 4K/60 4:4:4 or 12-bit HDR to 300m/984ft
• 16-slot 4K UHD matrix switcher featuring 16 inputs and 16 switchable zone outputs with integrated audio matrixing
• Modular platform with 4 modular card options including HDBaseT input and OM3 fiber transmission
• 18Gb/s backplane for support of HDMI2.0 video standard
• Supports HDR-10 HLG and Dolby Vision™ HDR content
• Integrated audio matrix supports up to 48 audio inputs: HDMI de-embed, S/PDIF in and Audio Return
• Audio DSP allows adjustment of volume, EQ and delay for every audio zone
• Audio zone can follow video output or be run independently for full audio matrix flexibility
• AVR Priority mode for all HDMI and HDBaseT outputs – dynamically manages requirement for multi-channel audio when it’s needed
• API generated control of displays via RS-232 or CEC
• CEC power triggering for all HDMI and HDBaseT outputs
• Source restriction of any source to any zone
• Built-in diagnostic to monitor system and transmission performance
• Delivers PoH to every HDBaseT zone, powering receivers
• Accessory devices to build large system infrastructures
• QuickSync™ technology for near instant switching
• SmartEDID™ feature dynamically solves mixed resolution conflicts when combining 2K/4K screens in the same installation

SPECIFICATIONS

Audio and Video

• Inputs:
  • Up to 16x HDMI In: 19-pin type A
  • Up to 16x HDBaseT™ In 8-pin RJ-45 female
  • Up to 16x S/PDIF In Coaxial Digital
• Outputs:
  • Up to 16x HDBaseT Out 8-pin RJ-45 female
  • Up to 16x HDMI Out 19-pin type A (Mirrors HDBaseT™)
  • Up to 16x Optical Out: SFP+
  • Up to 16x S/PDIF Out Coaxial Digital
  • Up to 16x Audio Out 3pin Phoenix Connector
• Output VIdeo Encoding: HDBaseT™ Class A 5-Play
• Encoding Data Rate: 9.2Bbps
• End to End Latency: 10µs (micro seconds)
• Audio Formats:
  • S/PDIF: 2ch PCM | Multichannel: Up to 5.1 DTS and Dolby Digital
  • HDMI: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
• Video Resolutions (Max) Video Resolutions

• Video Resolutions (Max)	Video Resolutions	HDMI	Cat6	Cat6a/7	OM3
  	1920x1080p @60Hz 12bit	15m/49ft	100m/328ft	100m/328ft	300m/984ft
  	1920x1200p @60Hz 16bit	7m/23ft	100m/328ft	100m/328ft	300m/984ft
  	3840x2160p @24Hz 10bit 4:2:0 HDR	3m/10ft	70m/230ft	100m/328ft	300m/984ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft	300m/984ft
  	3840x2160p @24Hz 10/12bit HDR 4:2:0	3m/10ft	70m/230ft	100m/328ft	300m/984ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft	70m/230ft	100m/328ft	300m/984ft
  	4096x2160p @60Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft	300m/984ft
  	Long Cable Mode Forced Resolution: 1920x1080p @60Hz 12bit	NA	140m/460ft	140m/460ft	NA

• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: HDMI: 600mHz | HDBaseT™: 297MHz

Communication and Control

• HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
• HDBaseT™: HDMI | HDCP 2.2 | EDID | ARC | 1-way PoH to Receiver | Bidirectional IR and Ethernet
• Ethernet: 1x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT™
• IR:
  • 1x IR Ext – 3.5mm (1/8in) TRS Stereo | Matrix Control
  • 10x IR RX – 3.5mm (1/8in) TRS Stereo | 10x IR TX – 3.5mm (1/8in) TS Mono
  • Transmits to Over HDBaseT™
• RS-232: Bidirectional over HDBaseT | Matrix Control | Firmware Updates
• Audio Return Channel (ARC): Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT™

Power

• Power Supply: 100~240V AC 50/60Hz
• PoH: 48V | Each HDBT Outputs: 15.4W | All Outputs: 95W
• Max Power Consumption:
  • Default Configuration: 200W
  • Note: Power Consumption increases by +11W for each optional TX-H2X-HDBT card installed.
  • Max of 6 TX-H2X-HDBT cards can be used within a single matrix when using PoH.

Environmental

• Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
• Maximum BTU: 682 BTU/hr

Dimensions & Weight

• Rack Units | Wall Box: 4U
• Height With | Without Feet: 183.1mm/7.22in | 176mm/6.93in
• Width With | Without Brackets: 483mm/19.02in | 440mm/17.33in
• Depth With | Without Handles: 420.7mm/16.57in | 382.7mm/15.07in
• Weight: 15.6kg/34.32lbs
