4+2 INPUT HDBASET SWITCHING EXSW0401H2PRO WYRESTORM

4+2 INPUT HDBASET™ SWITCHING EXTENDER WITH USB2.0 & RELAY TRIGGERING

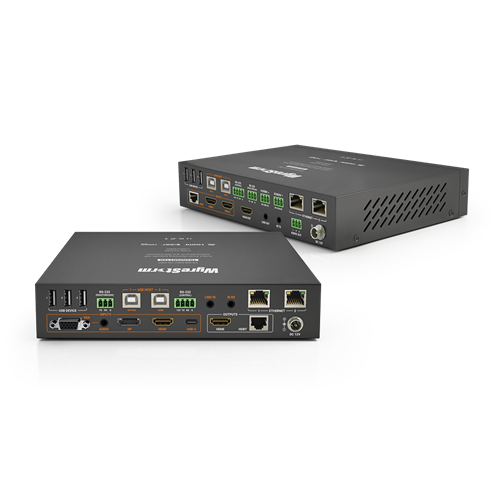

EX-SW-0401-H2-PRO

When HDBT2.0 meets WyreStorm’s presentation switcher platform, the result is a very powerful solution that is perfect for corporate meeting & video conference rooms. Multiple I/O’s, condition based relays and USB 2.0 extensions mean an autonomous experience with no user input required.

4-INPUT SWITCHING EXTENDER
A new flagship in our PRO range and a first for our switching extenders, the EX-SW-0401-H2-PRO brings features of the H2 and PRO products into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Proudly carrying the H2 moniker, it will support 4K content and even HDCP2.2 protected content.

ADDITIONAL RECEIVER INPUTS
When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.

TWO CONDITION-BASED RELAYS BUILT INTO RECEIVER
With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.

USB 2.0 PASS-THROUGH
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.

FEATURES

• 4x input professional switcher/extender for video conference and meeting rooms
• Bidirectional USB2.0 for connection of webcams, smart whiteboards, touchscreens and microphones
• Inputs include HDMI, VGA, DisplayPort 1.3 and USB 3.1c
• Supports source content up to 4K/60 4:2:0
• Variable audio de-embed on receiver
• Automatic or manual CEC triggering for compatible connected screens or projectors

SPECIFICATIONS

Audio and Video

• Inputs
  • (Transmitter)
    • 1x VGA In: 15-pin VGA
    • 1x Display Port In: DisplayPort 1.3
    • 1x HDMI In: 19-pin type A
    • 1x USB-C: USB 3.1 Audio/Video
    • 1x Audio In: 3.5mm (1/8in) TRS Stereo
    • 1x Line In: 3.5mm (1/8in) TRS Stereo
  • (Receiver)
    • 2x HDMI In: 19-pin type A
    • 1x HDBT In: 8-pin RJ-45 Female
• Outputs
  • (Receiver)
    • 1x HDMI Out: 19-pin type A
    • 1x HDBT Out: 8-pin RJ-45 Female
  • (Transmitter)
    • 1x HDMI Out: 19-pin type A
    • 1x Audio Out: 3-pin Pheonix
    • 1x Line Out: 3.5mm (1/8in) TRS Stereo
• Output Video Encoding: HDBaseT™ Class C
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10μs (micro seconds)
• Audio Formats: 2ch Analog/PCM | Multichannel: LPCM

• Video Resolutions (Max)	Video Resolutions	HDMI	Cat6	Cat6a/7
  	1920x1080p @60Hz 8bit	15m/49ft	150m/492ft	150m/492ft
  	1920x1200p @60Hz 8bit	15m/49ft	150m/492ft	150m/492ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	100m/328ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft	100m/328ft	100m/328ft

• Supported Standards: DCI | RGB
• Maximum Pixel Clock: 297MHz

Communication and Control

• HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
• HDBaseT™: HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
• RS-232: 1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
• Ethernet: 2x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT™
• IR: 1x IR TX: 3.5mm (1/8in) TS Mono
• Relays: 1x Screen UP: 3-pin Phoenix | 1x Screen DWN: 3-pin Phoenix
• USB:
  • 1x USB-C: USB 3.1 Audio/Video (Transmitter Only)
  • 2x USB Host: USB-B | 3x USB Device: USB-A (Transmitter and Receiver)

Power

• Power Supply: 12V DC 2A
• Max Power Consumption: Transmitter: 14.02W | Receiver: 16.25W

Environmental

• Operating Temperature:
  • 32°F ~ 113°F (0°C ~ 45°C)
  • 10% ~ 90%, non-condensing
• Storage Temperature:
  • -4°F to ~ 158°F (-20°C ~ +70°C)
  • 10% ~ 90%, non-condensing
• Maximum: BTU Transmitter: 56.3BTU/hr | Receiver: 55BTU/hr

• 	Transmitter	Receiver
  Rack Units | Wall Box	<1U	<1U
  Height With | Without Feet	45.5mm/1.76in | 42mm/1.66in	44.5mm/1.76in | 42mm/1.66in
  Width With | Without Brackets	263mm/10.36in | 220mm/8.67in	263mm/10.36in | 220mm/8.67in
  Depth With | Without Handles	148.7mm/5.86in | 148.7mm/5.86in	148.7mm/5.86in | 148.7mm/5.86in
  Weight	0.97kg/2.13lbs	0.95kg/2.09lbs
