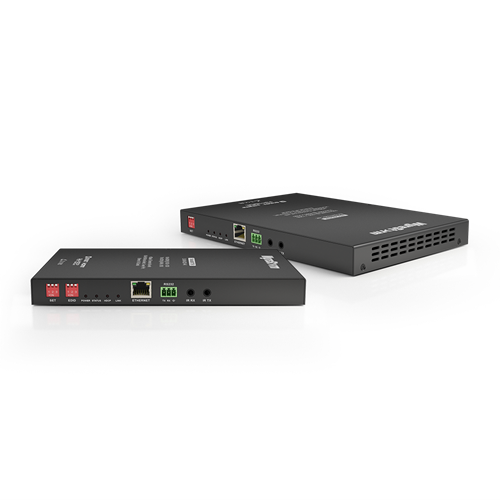

WYRESTORM EX-SW-0201-4K HDBASET™ VGA/HDMI EXTENDER SET

HDBASET™ VGA/HDMI EXTENDER SET WITH ETHERNET, BIDIRECTIONAL IR, RS-232 AND 2-WAY POH (4K: 70M/230FT | 1080P: 100M/328FT)

EX-SW-0201-4K

Supporting resolutions up to 4K, this fully-featured Class A HDBaseT extender is designed for use in small meeting room or classroom environments where distribution and control of VGA or HDMI devices up to 100m/328ft is required.

DUAL-INPUT TRANSMITTER
Whether it’s a classroom or meeting room, you can never be too sure what devices will turn up. That’s why we’ve included VGA+audio and HDMI connections on this transmitter, it’ll also auto-switch between them should both need to be connected simultaneously.

FAULTLESS CLASS A HDBASET™ TRANSMISSION
Proudly flying the flag for the full Class A HDBaseT™ feature set, the EX-SW-0201-4K levels-up, supporting not only 4K video (HDMI input only), HD Audio and control but also allowing Ethernet passthrough and 2-way PoH, meaning the extender can be powered from a single PSU located at either end.

AUDIO DE-EMBED ON RECEIVER
Meeting spaces don’t usually have the audio systems capable of handling HDMI connectivity, once connected to the screen, the signal is often terminated. We’ve included an audio output on the receiver of this extender to feed a simple stereo audio signal to a local audio system if sound reinforcement is required.

FLEXIBLE INSTALL OPTIONS WITH 2-WAY POH
No 2 installs are the same, that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX side.

FEATURES

• A full-featured HDBaseT extender set with the added feature of a VGA/HDMI auto-switching transmitter
• Transmit HD resolutions up to 1920×1200 to 100m/328ft
• Transmit 4K@60Hz (4096×2160) to 70m/230ft
• HDCP 2.2 compliant
• 3D supported
• Auto-switching transmitter detects and selects VGA (+audio) and HDMI devices as soon as the source is connected
• 2-way PoH gives flexible installation options by allowing either the transmitter or receiver to be powered remotely
• Audio embed on transmitter and audio de-embed on receiver via 3.5mm jack connection for HDMI or VGA
• EDID management and DIP switch selection for manual setting of resolution, RS-232 control/firmware update function and long cable mode
• Low-profile 18mm chassis for unobtrusive installation
• Cable termination follows IEEE-568B standards
• LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and transmission link.
• Threaded bushings allow use of both standard and locking DC power plugs
• Energy efficient universal power supply included
• Mounting brackets included

SPECIFICATIONS

Audio and Video

• Inputs
  • (Transmitter)
    • 1x HDMI 19-pin type A
    • 1x VGA In 15-pin VGA VESA (D-SUB 15)
    • 1x Audio In 3.5mm (1/8in) Stereo Jack
  • (Receiver)
    • 1x HDBaseT™ 8-pin RJ-45 female
• Outputs
  • (Transmitter)
    • 1x HDBaseT 8-pin RJ-45 female
  • (Receiver)
    • 1x HDMI 19-pin type A female
    • 1x Audio Out 3.5 (1/8in) Stereo Jack
• Audio Formats: 2ch PCM | Up to 7.1 DTS-X and Dolby Atmos

• Video Resolutions (Max)	Video Resolutions	HDMI	Cat6	Cat6a/7
  	1920x1200p @60Hz 16bit	15m/49ft	70m/230ft	100m/328ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft	70m/230ft	100m/328ft

• Supported Standards: DCI
• Maximum Pixel Clock: 297mHz

Communication and Control

• HDMI: HDCP 2.2 Compliant | EDID | DVI/D supported with adapter (not included)
• HDBaseT™: HDCP 2.2 Compliant | EDID | 2-way PoH | Bidirectional IR and RS-232
• RS-232: 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT™
• IR:
  • 1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT™
  • 1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT™
• Ethernet: 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating

Power

• Power Supply: Input: 100~240V AC 50/60Hz | Output: 12V DC 2A
• Max Power Consumption: 26.5W
• PoH: 48V 15.4W

Environmental

• Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
• Maximum BTU: 90.42

Dimensions & Weight

• Rack: Units/Wall Box 1U
• Height: 20mm/0.79in
• Width: 200mm/7.88in
• Depth: 134mm/5.28in
• Weight: 0.6kg/1.32lbs
