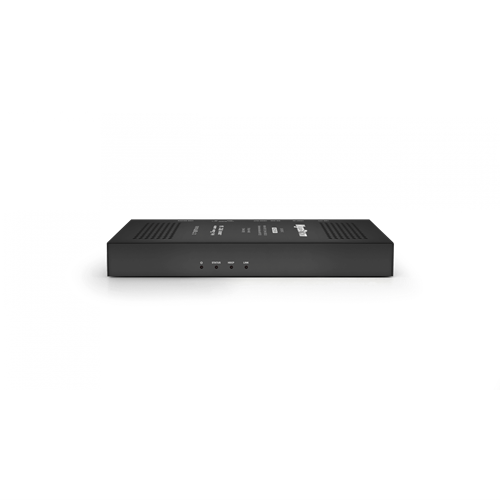

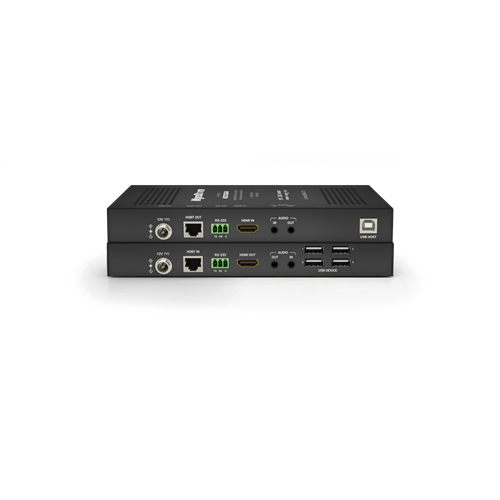

Wyrestorm – WY-EX100H2PRO 4K HDR 4:4:4 60Hz HDBaseT Extender with DSC supporting USB.2.0 client/
$1,279.00 RRP Inc GST
SKU: EX-100-H2
The EX-100-H2 uses the powerful HDBaseT 2.0 chipset to send along 4K, USB, PoH and HD audio up to 100m/328ft with a single Cat 6 cable. This extender hosts the perfect combination of features to give you the tools you need to set up your next conference or presentation. With separate audio lanes, you’re free to send audio independently to overlay your presentation.
With data transfers in mind, the EX-100-H2 is equipped with the fastest USB hardware HDBaseT is currently capable of; USB 2.0 and up to 190Mbps, which is everything you need to set up HD webcams, smart whiteboards, transfer data and so much more!
HDBASET SPEC 2.0
Featuring the powerful Class C HDBaseT chipset, UHD video & audio, USB, RS-232 and PoH are sent and distributed losslessly over distances of 100m/328ft.
USB 2.0 PASSTHROUGH
Equipped with the HDBaseT 2.0 spec, the EX-100-H2 not only provides KVM functionality for extension of keyboard/mouse or touchscreen, but also transfers the highest data rate that HDBaseT has to offer of 190Mbps, for webcams, white boards and USB data drives.
BIDIRECTIONAL AUDIO LANE
Two separate audio feeds can also be sent bidirectionally, thanks to a dedicated audio pass-through that allows 2ch analog to be sent and received at either end completely independent of the HDMI signal.
Power Over HDBaseT
A standard feature in most WyreStorm extenders, simply power the transmitter side of the extender and the receiver will power over the category cable. Reducing points of failure and making installation easier.
AUDIO AND VIDEO
Video Resolution | HDMI | Cat6 | Cat6a/7 |
1920x1080p @60Hz 12bit | 7m/23ft | 70m/230ft | 100m/328ft |
3840x2160p @30Hz 8bit 4:4:4 | 15m/49ft | 70m/230ft | 100m/328ft |
3840x2160p @30Hz 12bit 4:2:2 HDR | 5m/16ft | 70m/230ft | 100m/328ft |
3840x2160p @30Hz 8bit 4:4:4 HDR | 7m/23ft | 70m/230ft | 100m/328ft |
COMMUNICATION AND CONTROL
POWER
ENVIRONMENTAL
DIMENSIONS & WEIGHT
