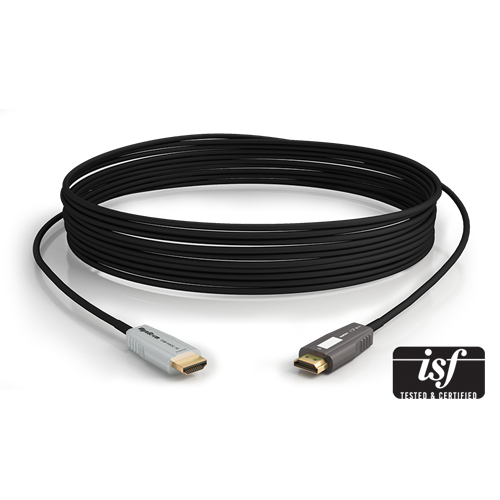

WYRESTORM 15M OPTICAL HDMI CABHAOC15 WYRESTORM

CAB-HAOC-15

18GBPS OVER ACTIVE OPTICAL HDMI CABLE 15M/49FT

Next generation active optical HDMI cables designed for next generation 4K UHD with HDR content, the WyreStorm CAB-HAOC-15 delivers uncompressed full bandwidth 18Gbps HDMI content up to 15m/49ft using the latest optical transmission technology.

FEATURES:

• Uncompressed transmission of 18Gbps HDMI content over optical transmission
• Available in 10m/32ft, 15m/49ft, 20m/65ft and 30m/98ft cable lengths
• Supports full bandwidth 4K/60 4:4:4 8-bit and 4K/60 4:2:2 HDR 12-bit
• Perfect for use in environments with excessive EM or RF interference
• Solid alloy head construction with 20mm/0.79” width perfect for feeding through conduit
• HDCP 2.2, ARC and CEC support

• Uncompressed optical transmission of HDMI content up to 24Gbps:
  • 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
  • 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
  • 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
• Compatible with all current and emerging HDR standards at up to 60Hz:
  • HLG (Hybrid Log Gamma)
  • HDR-10 and HDR-10+
  • Dolby Vision
  • PQ (Perceptual Quantizer)
  • SL-HDR-1
• Ready for future HDCP 2.3 content encryption
• True native HDMI communication ensures CEC and ARC communication between compatible devices
• Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
• Perfect for use in environments with excessive EM or RF interference
• Kevlar protected communication cores
• High quality aluminum construction with low-profile 20mm/0.79” TX head
• Supplied coiled on cardboard spool in box, with RX head out first.
• No single use plastic included* #SUPFree

SPECIFICATIONS

Transmission

• Transmission Encoding: Uncompressed AOC
• End to End Latency: 10µs
• Maximum Transmission Bit Rate: 24 Gbps (4-core, 6Gbps per lane)

Video

• HDMI:
  • (v2.0b) TMDS | 600MHz Maximum
  • (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding
• Input: 1x HDMI: 19-pin Type A Male
• Output: 1x HDMI: 19-pin Type A Male
• Maximum Data Rate: 22.8 Gbps
• Video Resolutions (Max):
  • 1920x1080p @120Hz
  • 2560x1440p @144Hz
  • 3840x2160p @60Hz 10bit HDR 4:2:0
  • 3840x2160p @60Hz 12bit HDR 4:2:2
  • 3840x2160p @60Hz 10bit HDR 4:4:4
  • 3840x2160p @60Hz 10bit HDR RGB
  • 5120x2880p @30Hz 10bit HDR 4:4:4
• Supported Standards: DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100

Audio

• Audio Formats:
  • 2ch PCM
  • Multichannel LPCM
  • DTS-X
  • Dolby Atmos
• Maximum Sampling Rate: 192KHz
• Maximum Audio Channels: 32
• Audio Return Channel (ARC): Supported

Communication and Control

• HDCP: Pass-Through, 2.3 Supported
• EDID: Pass-Through, RX > TX
• Ethernet: 100Mbps Supported
• Consumer Electronics Control (CEC): Supported
• Auto Low Latency Mode (ALLM): Supported
• Variable Refresh Rate (VRR): Supported

Installation Restrictions

• Max Bend Radius: 2cm
• Max Pull Tension: 15kg/33lbs
• Orientation: Uni-directional – Observe signal flow direction prior to installation

Power

• Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)
• Max Power Consumption: 250mW

Environmental

• Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
• Maximum BTU: 0.85 BTU/hr
• Impact: Low, free from single use plastic

Dimensions & Weight (Connector Housing)

• Height: 9mm/0.36in
• Width: 19.8mm/0.78in
• Depth: 39.5mm/1.56in
• Weight: NA
