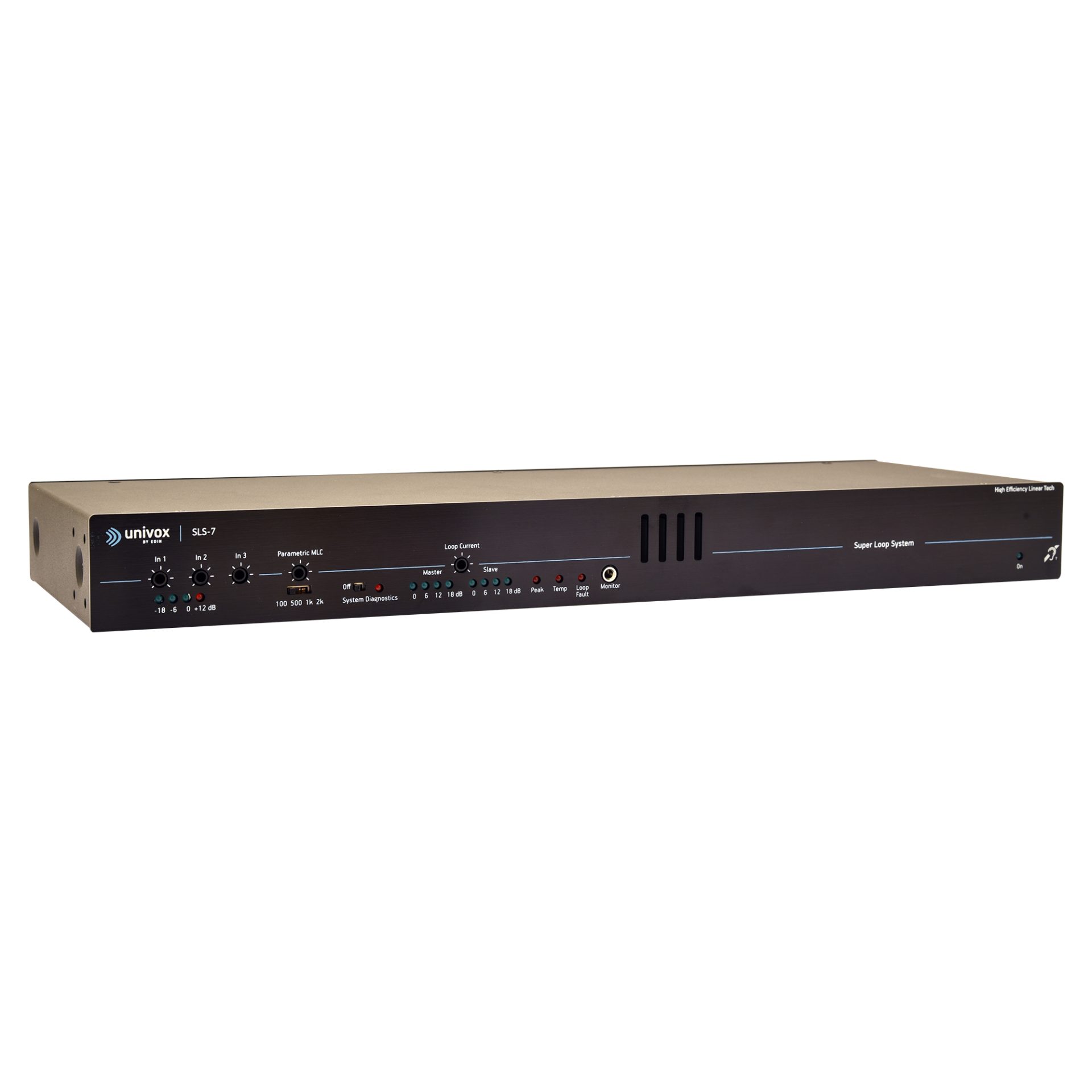

UNI-SLS-7

High Efficiency Linear Technology

Univox SLS-7 is a powerful phased array induction loop amplifiers designed for very large-area loop installations. The SLS-7 drives up to 100 Vpp and 10 Arms per channel. With wide dynamic response from complementary balanced outputs, SLS-7 drivers provide excellent dynamics with top audio quality. Our ground-breaking filter bank eliminates any Class-D associated non-linearity or interference. Due to la Class-D low heat dissipation, the drivers claim no extra ventilation space in your AV-rack. Developed on Univox linear switching technology, with electronic transformers and fan-free design, SLS-7 is a new long-life, reliable product from Univox.

Intelligent system monitoring

Apart from the self-diagnostic system, SLS-7 features continuous monitoring of the input and output logic, warning for any inconsistency within the loop function. A built-in output relay allows for easy connection to a smart mixer or a monitor computer. SLS-7D also features RJ-45 Dante PoE connection (part no 217710EU/AUS/UK/US)

Enhanced metal loss compensation

Univox PLS/SLS linear tech series is equipped with a unique Parametric MLC (Metal Loss Compensation) control, enabling system frequency response correction in environments where the signal strength is strongly influenced
by the surrounding metal.

Features

• Dante PoE input for additional network audio (optional, part no 227010EU/AUS/UK/US)
• High dynamic performance through linearized switching
• High power – 20/2×10 Arms
• Parametric metal loss compensation
• Built-in system diagnostics
• Fan-free convection cooling
• Automatic safe mode
• 50-100 V high voltage speaker input
• High slew rate audio IC internally used
• Fast-action AGC with an exceptional constant and stable linear output
• Low frequency masking filter – voice enhancement
• Voltage peak indicator
• Fault monitor indication LED
• ULD supported for easy project planning
• 5-year warranty
