UNI-PLS-7

High Efficiency Linear Technology

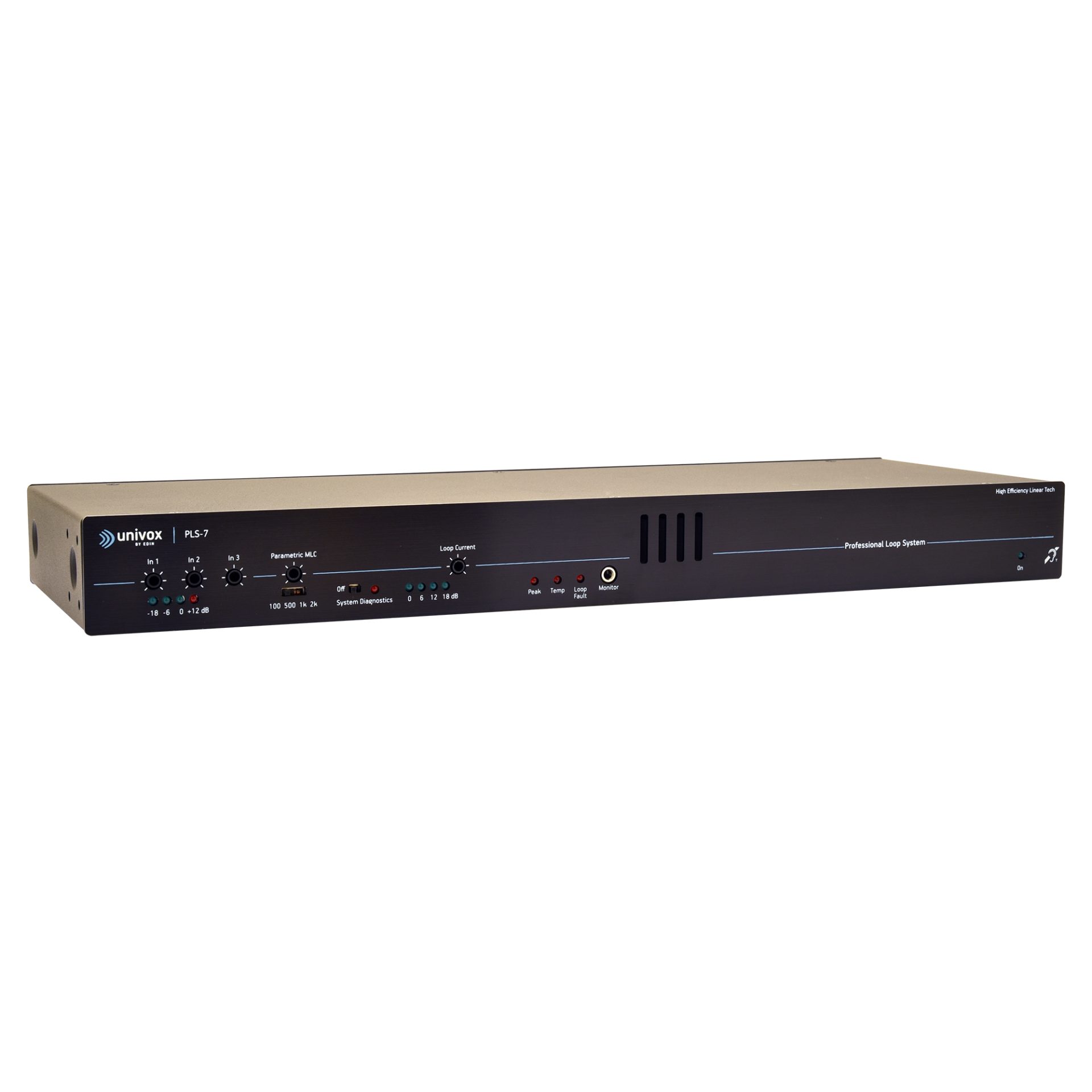

Univox PLS-7 is a powerful induction loop amplifier designed for very large-area loop installations. PLS-7 delivers up to 100Vpp/20 Arms. With wide dynamic response from complementary balanced outputs, PLS-7 drivers provide excellent dynamics with top audio quality. Our ground-breaking filter bank eliminates any Class-D associated non-linearity or interference. Due to la Class-D low heat dissipation, the drivers claim no extra ventilation space in your AV-rack. Developed on Univox linear switching technology, with electronic transformers and fan-free design, PLS-7 is a new, long-life, reliable product from Univox.

Intelligent system monitoring
Apart from the self-diagnostic system, PLS-7 features continuous monitoring of the input and output logic, warning for any inconsistency within the loop function. A built-in output relay allows for easy connection to a smart mixer or a monitor computer. PLS-7D also features RJ-45 Dante PoE connection (part no 217710EU/AUS/UK/US)

Enhanced metal loss compensation
Univox PLS-7 linear tech series is equipped with a unique Parametric MLC (Metal Loss Compensation) control, enabling system frequency response correction in environments where the signal strength is strongly influenced
by the surrounding metal.

Features
Dante PoE input for additional network audio (optional, part no 217710EU/AUS/UK/US)
High dynamic performance through linearized switching
High power – 100 Vpp
Parametric metal loss compensation
Built-in system diagnostics
Fan-free convection cooling
Automatic safe mode
50-100 V high voltage speaker input
High slew rate audio IC internally used
Fast-action AGC with an exceptional constant and stable linear output
Low frequency masking filter – voice enhancement
Voltage peak indicator
Fault monitor indication LED
ULD supported for easy project planning
5-year warranty
