TOA-TH650/TU651

$205.00 MSRP inc.GST

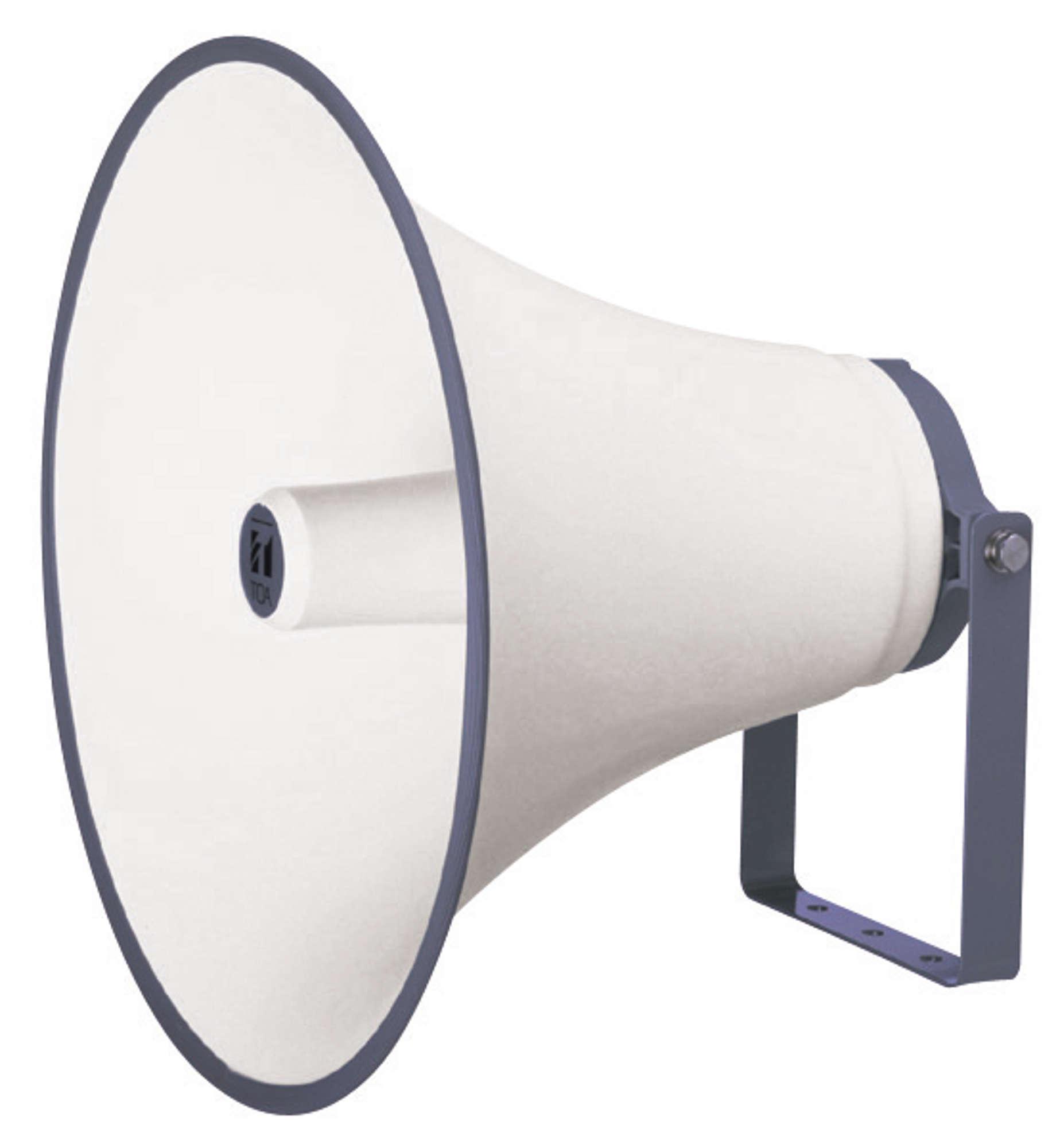

TOA – TH650/TU651 – Speaker – Horn 50 Watt – 16 Ohm – IP65 500mm

The TH-650 is a speaker horn to be used in combination with an optional driver unit. Its powder-coated finish, and stainless steel screws ensure the unit’s weatherproof capability.

The TU-651 is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.

Specification
Applicable Drivers TU-631, TU-631M, TU-651, TU-651M
Sound Pressure Level 110 dB (1 W, 1 m) (When operated with a driver.)
Frequency Response 200 Hz – 6 kHz (When operated with a driver.)
Dust/Water Protection IP65 (When operated with a driver.)
Driver Coupling 1 – 3/8 18 threads (inch screw)
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Finish Horn flare and flange: Aluminum, off-white, powder coating
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating
Screws and boits: Stainless steel
Dimensions φ500 × 394 (D) mm
Weight 2.9 kg
Specification
Applicable Horns TH-650, TH-660
Rated Input 50 W
Rated Impedance 16 Ω
Sensitivity 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response 150 Hz – 6 kHz (When operated with JIS C 5504 standard horn.)
Dust/Water Protection IP65 (When a driver is operated with a horn.)
Horn Coupling 1 – 3/8 18 threads (inch screw)
Polarity Hot: Black, Com: White
Operating Temperature -20 %%dC to +55 %%dC (-4 ゜F to +131 ゜F) (no condensation)
Finish Flange: Aluminum, gray, powder coating
Rear cover: ABS resin, gray
Screws: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24″) in diameter, 600 mm (23.62″) in length)
Dimensions %%c139 × 106 (D) mm (φ5.47″ × 4.17″)
Weight 2 kg (4.41 lb)
Option Driver unit cover: UC-200A
Matching transformer: TM-30T, TM-60T
