TOA-TC615M

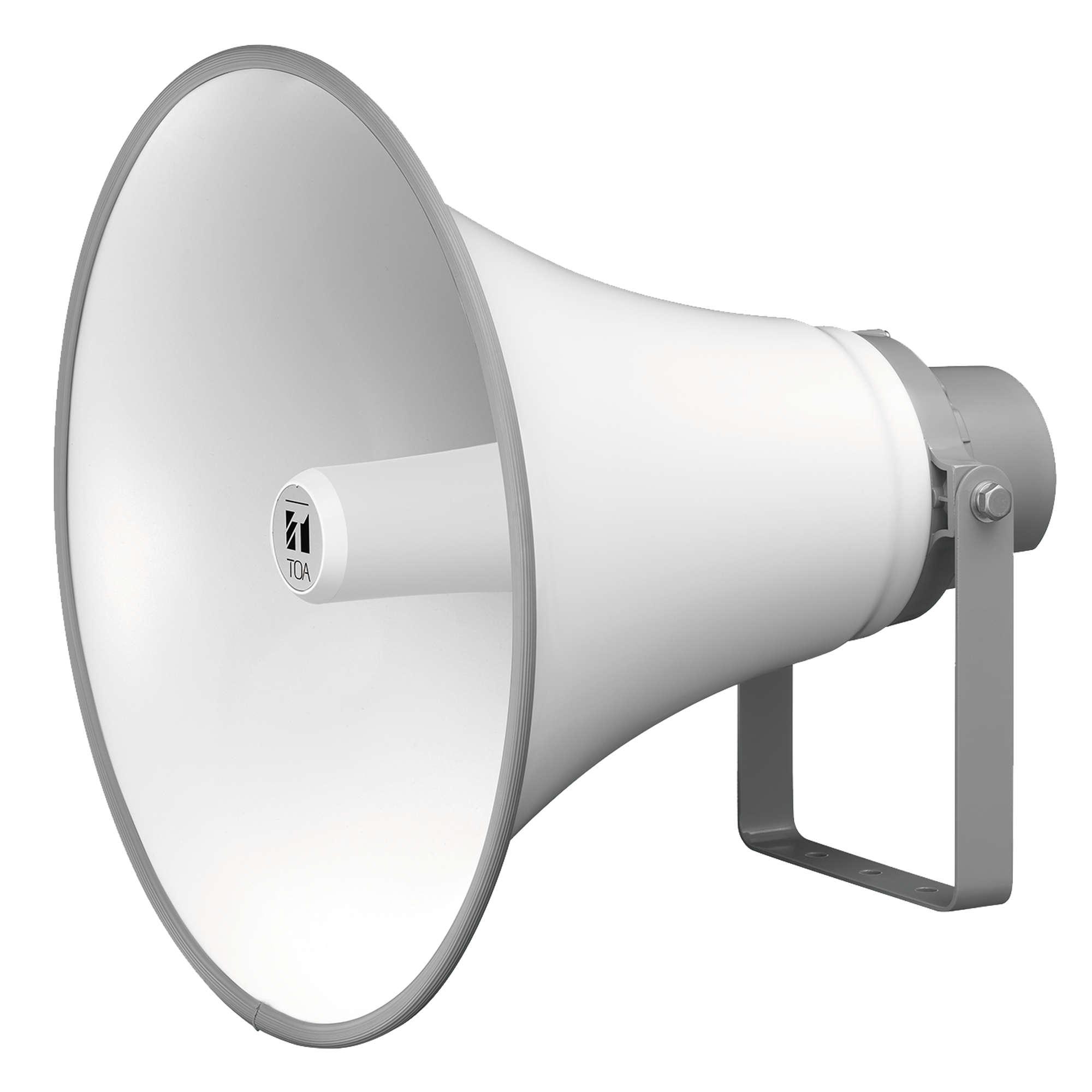

TOA – TC615M – Speaker – Horn 15 Watt – 100 volt – IP65 400mm

$229.00 RRP Inc GST

Quantity

TOA-TC-615M (100v & 70v Line)

Horn Speakers

The TC-615M is a highly intelligible, general-purpose speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel screws ensure the unit’s weatherproof capability.

  • High intelligibility
  • Weatherproof for outdoor application
  • Stainless steel hardware (screws, bolts, nuts), and powder-coated horn and bracket ensure superb weatherproofing and corrosion-resistance
  • Shock-resistant aluminum round horn
  • With 600 mm cable
Specifications for product:
TC-615M TC-615 TC-631 TC-631M
Frequency response 250 Hz – 7 kHz 250 Hz – 7 kHz 200 Hz – 6 kHz 200 Hz – 6 kHz
Sensitivity (1 W, 1 m) 108 dB 108 dB 110 dB 110 dB
Rated input (100 V) 15 W 15 W 30 W 30 W
Tappings 100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)

70V LINE: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W)

 100V line: 330 Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)
Operating temperature -20°C to +55°C -20°C to +55°C -20°C to +60°C -20°C to +60°C
Finish Aluminium, traffic white (RAL 9016 or equivalent) Aluminium, traffic white (RAL 9016 or equivalent) Aluminium, traffic white (RAL 9016 or equivalent) Aluminium, traffic white (RAL 9016 or equivalent)
Dimensions 400 x 376 mm (Ø x D) 400 x 376 mm (Ø x D) 500 x 463 mm (Ø x D) 500 x 463 mm (Ø x D)
Weight 3.2 kg 3 kg 4.1 kg 4.5 kg
Rated impedance 8 Ω 16 Ω



SKU TOA-TC615M Categories , , , ,
