TOA-SC630M

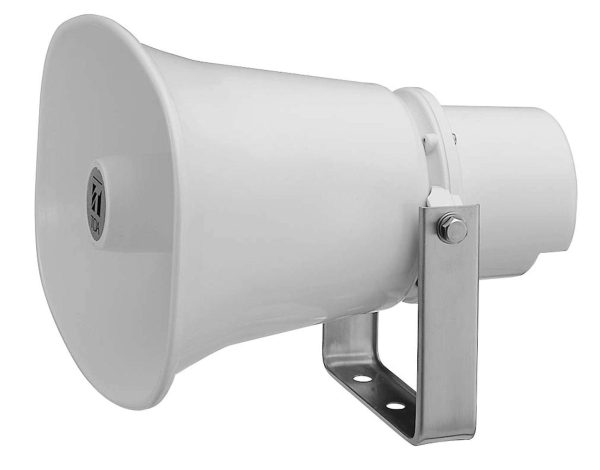

TOA – SC630M – Speaker – Horn 30 Watt – 100 Volt – IP65

$149.00 RRP Inc GST

Quantity

TOA – SC-630M (100v & 70v line)

Horn Speakers



The SC-630M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

  • Very rugged speaker with durable construction ensures long term reliable operation
  • High quality sound
  • High SPL
  • Easy impedance selection through switch
  • High impedance 100 V line
  • Shock resistant oval horn
Specifications for product:
SC-630M SC-610M SC-615M
Frequency response 250 Hz – 10 kHz 315 Hz – 12.5 kHz 280 Hz – 12.5 kHz
Sensitivity (1 W, 1 m) 113 dB 110 dB 112 dB
Rated input (100 V) 30 W 10 W 15 W
Tappings 30 / 15 / 10 / 5 W (70 V)

30 / 15 / 7.5 / 5 / 2.5 W (100 V)

 100V line: 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W)

70V line: 500Ω (10W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W), 10kΩ (0.5W)

 100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)

70V LINE: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W)
Operating temperature -20 °C to +55 °C (must be free from dew condensation) -20 °C to +55 °C (must be free from dew condensation) -20 °C to +55 °C (must be free from dew condensation)
Finish Aluminium, off-white (RAL 9010 or equivalent) Aluminium, off-white (RAL 9010 or equivalent) Aluminium, off-white (RAL 9010 or equivalent)
Dimensions 285 x 227 x 277 mm (W x H x D) 172 x 161 x 188 mm (W x H x D) 222 x 179 x 234 mm (W x H x D)
Weight 2 kg 1.2 kg 1.3 kg
SKU TOA-SC630M Categories , , , ,
