TOA – SC-615M (100v & 70v Line)

The SC-615M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

• Very rugged speaker with durable construction ensures long term reliable operation
• High quality sound
• High SPL
• Easy impedance selection through switch
• High impedance 100 V line
• Shock resistant oval horn

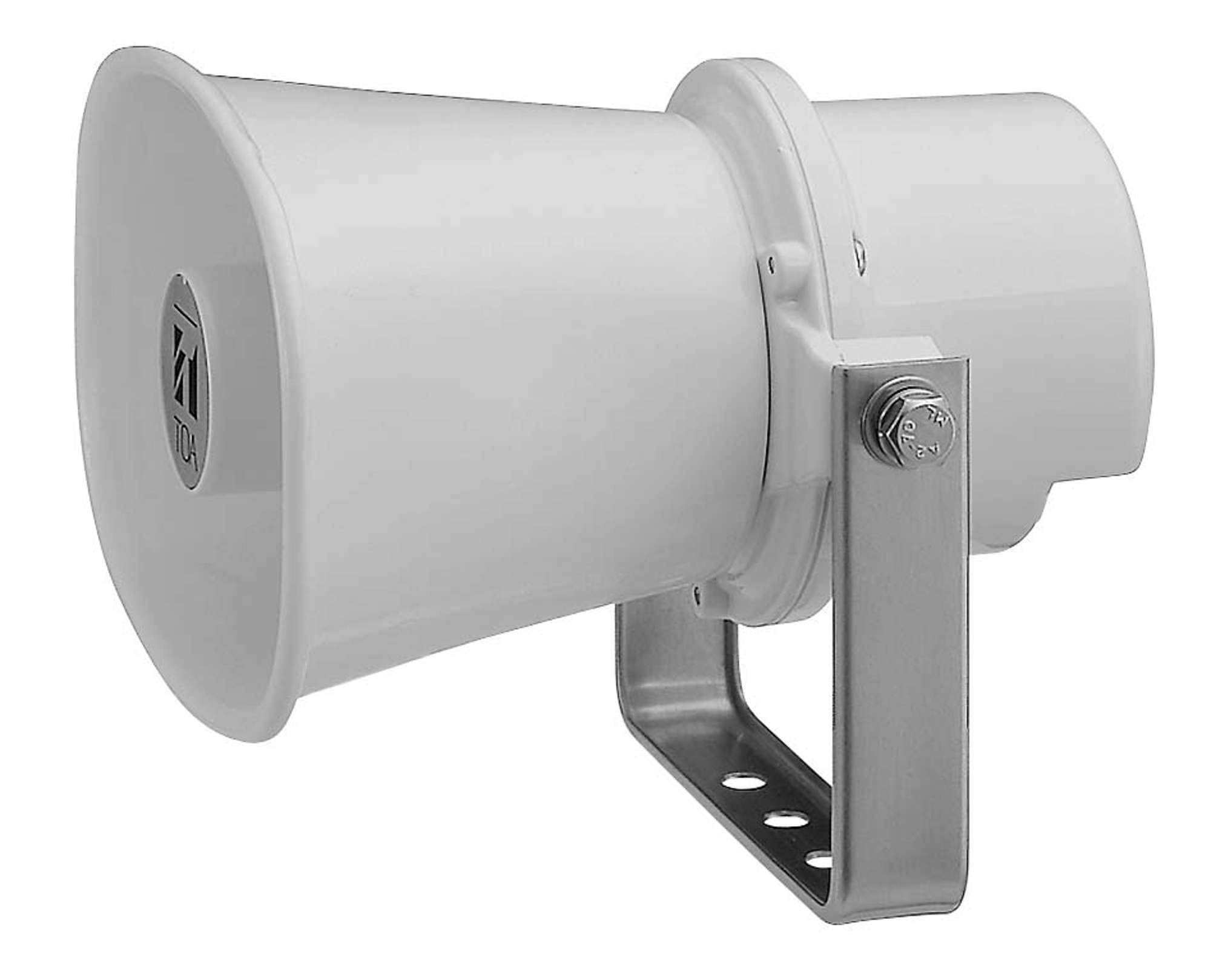

TOA SC615M paging horn speaker is a 15W 70V/100V line high impedance horn loudspeaker. Suitable for public address announcement applications.
Its external speaker component are finished with powder coating. Stainless steel bracket and screws ensure the unit’s weatherproof and corrosion resistance capability. The horn flare is made of aluminum, which is more shock resistant than resin.

The “M”-Type lineup includes models rated at 10W (SC610M), 15W (SC615M) and 30W (SC630M). These models are designed for use in high-impedance (70V/100V lines) systems. This wide product lineup permits selection of the ideal speaker for most applications. High-impedance models are equipped with an input impedance selector switch. The switch is also equipped with an OFF position which helps prevent speaker damage resulting from incorrect impedance settings.

SC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.

The unique oval shape enhances excellent speech clarity. The TOA SC615M horn speaker is an excellent choice for most applications.
