TOA-SC615BS

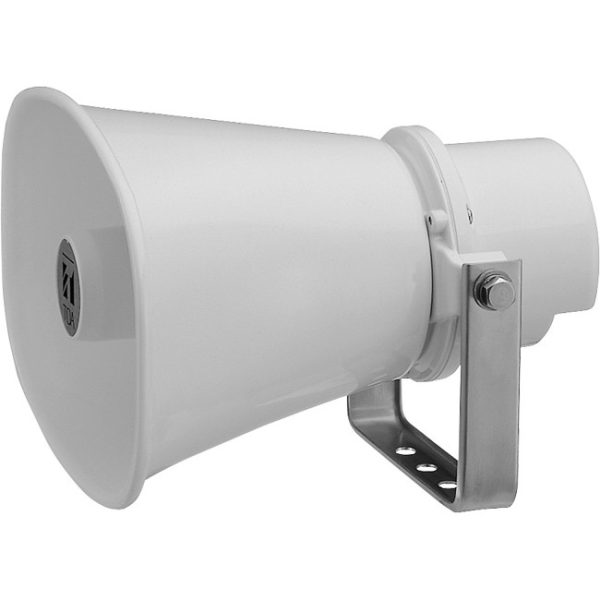

TOA – SC615BS – Speaker Horn – 15 Watt – 100 Volt – IP65 AS7240.24:2018 – Outdoor Type B

$199.00 RRP Inc GST

Quantity

TOA – SC-615BS

Horn Speaker

The speaker shall be a weatherproof horn speaker suitable for both indoor and outdoor applications. It is also designed for use in voice evacuation systems. Rated input shall be 15 W. Input impedance shall be easily adjustable with rotary switch on the rear side of the speaker. The speaker shall include a transformer having multiple taps (3 W, 5 W, 10 W, 15 W at 100 V and 1.5 W, 2.5 W, 5 W, 7.5 W, 15 W at 70 V) adjustable.

The sensitivity at a distance of 1m with a 1W input level applied shall be 109 dB, high efficiency. The speaker shall have a frequency response of 315 – 12.5 kHz. Horizontal and vertical dispersion at -6 dB below the on-axis reference at 2 kHz shall be 85° (H) x 115° (V). The speaker shall have an operating temperature of -20°C to +55°C.

The speaker diaphragms shall be employing special heat-resistant fibres impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. The aluminium foil bobbin shall have excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.The speaker shall have enhances excellent speech clarity. The mounting brackets and all external hardware (screws, bolts) shall be made of stainless steel. The speaker shall have excellent weatherproofing and corrosion resistance. The speaker shall have an IEC 60529 / EN 60529 dust tight and jet-water proof rating of IP65c. The external horn flare shall be made of aluminium, which shall have more shock resistant than resin.

A fire-resistant steatite screw terminal block with thermal fuse with a blowing temperature of 84°C allows secure cable connections and bridge wiring. Internal cables shall be flame-resistant insulation. Fire Rated Cable can be directly connected to the speaker cabinet via 20 mm cable gland.

The switch is also equipped with an OFF position to prevent speaker damage resulting from incorrect impedance setting. The speaker shall be certified according to EN 54-24 with CPD Number 0359-CPD-0109, certified according to ISO 7240-24 and in compliance with the British Standard BS 5839-8: 2013

The speaker shall be a TOA model SC-615BS.

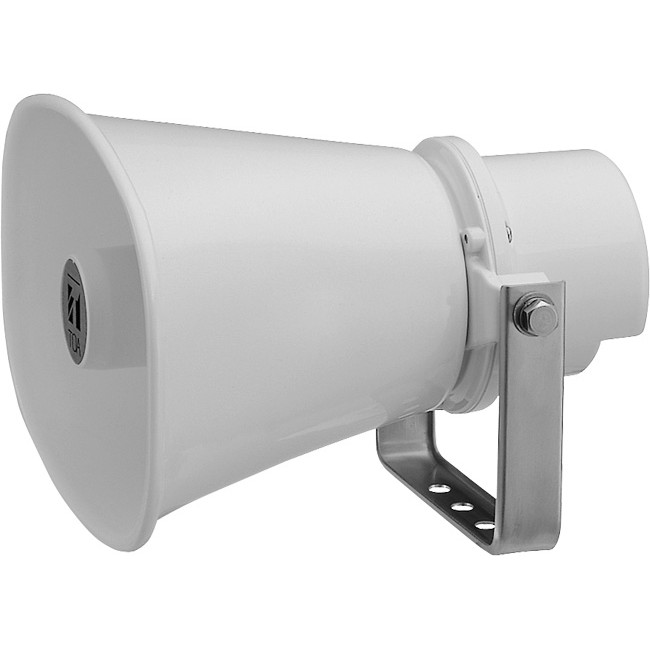

The SC-615BS is the voice alarm certification product. This speaker can be a clearer announcement for voice alarm. The SC-615BS Paging horn speaker features an aluminium horn flare and stainless steel bracket for all weather durability. The SC-615BS unique oval shape horn enhances excellent speech clarity.

  • All weather durabilty
  • Very rugged and durable construction ensures long term reliable operation
  • High speech clarity
  • High SPL
  • Wide frequency response
  • Easy impedance selection
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8: 2013
Specifications for product:
SC-615BS SC-630M EB-Q SC-615M
Frequency response 315 Hz – 12.5 kHz 250 Hz – 10 kHz 280 Hz – 12.5 kHz
Sensitivity (1 W, 1 m) 109 dB 113 dB 112 dB
Max. SPL (1 m) 110 dB 111 dB
Rated input (100 V) 15 W 30 W 15 W
Tappings 100 V: 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3 W)
70 V: 330 Ω (15 W) / 670 Ω (10 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W)
100 V: 330 Ω (30 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)
70 V: 170 Ω (30 W) / 330 Ω (15 W) / 670 Ω (10 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W)
100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)

70V LINE: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W)

Operating temperature -20 °C to +55 °C (-4 °F to 131 °F) -20 °C to +55 °C (must be free from dew condensation)
Finish Aluminium, off-white (RAL 9010 or equivalent) Aluminium, off-white (RAL 9010 or equivalent) Aluminium, off-white (RAL 9010 or equivalent)
Dimensions 172 x 195 x 229 mm (W x H x D) 285 x 227 x 277 mm (W x H x D) 222 x 179 x 234 mm (W x H x D)
Weight 1.5 kg 2 kg 1.3 kg
