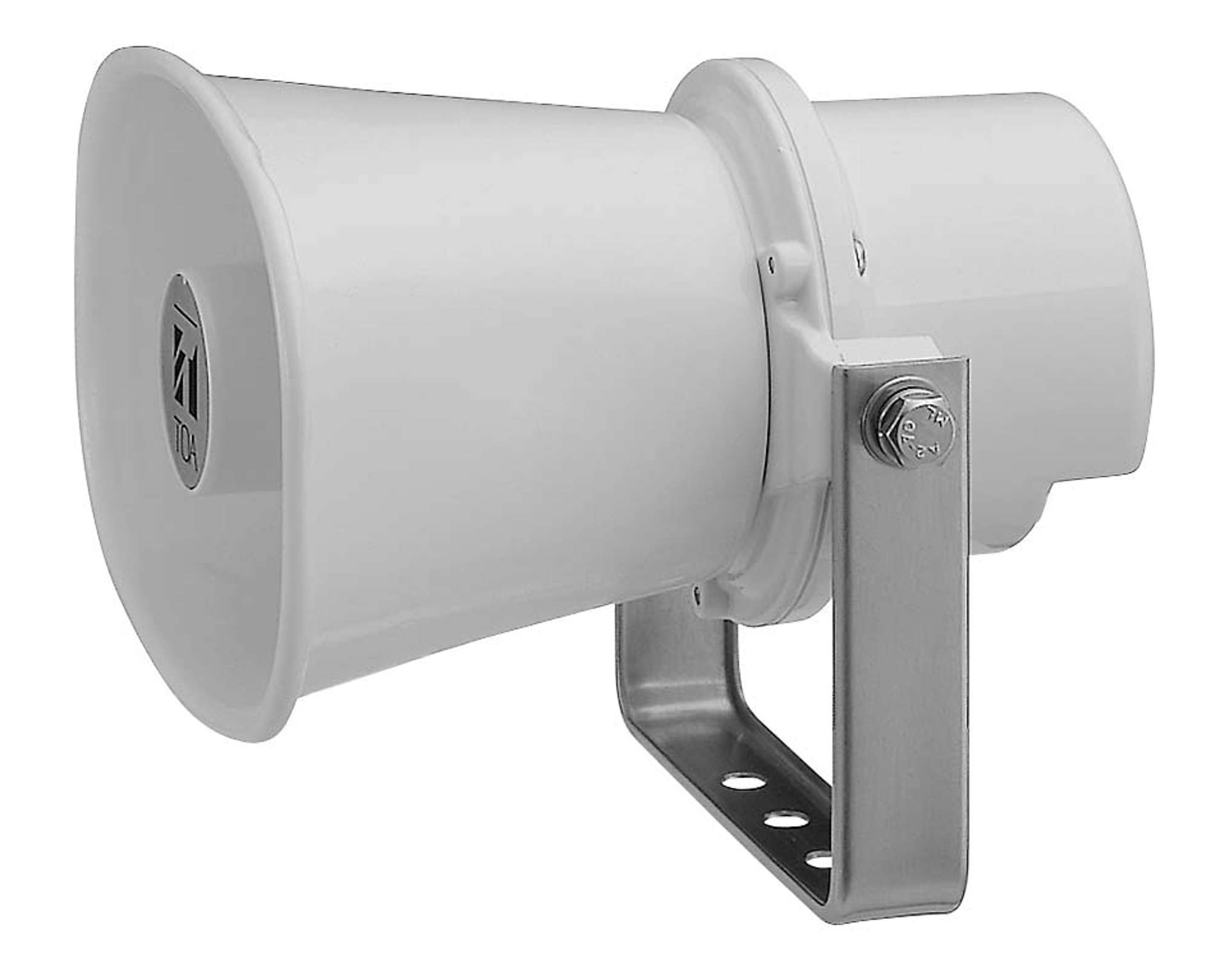

TOA – SC610M – Speaker – Horn 10 Watt – 100 Volt – IP65
$99.00 RRP Inc GST
The SC-610M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.
TOA SC610M paging horn speaker is a 10W 70V/100V line high impedance horn loudspeaker. Suitable for public address announcement applications.
Its external speaker component are finished with powder coating. Stainless steel bracket and screws ensure the unit’s weatherproof and corrosion resistance capability. The horn flare is made of aluminum, which is more shock resistant than resin.
The “M”-Type lineup includes models rated at 10W (SC610M), 15W (SC615M) and 30W (SC-630M). These models are designed for use in high-impedance (70V/100V lines) systems. This wide product lineup permits selection of the ideal speaker for most applications. High-impedance models are equipped with an input impedance selector switch. The switch is also equipped with an OFF position which helps prevent speaker damage resulting from incorrect impedance settings.
SC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.
The unique oval shape enhances excellent speech clarity. The TOA SC610M horn speaker is an excellent choice for most applications.
SC-610M | SC-615M | SC-630M | |
---|---|---|---|
Frequency response | 315 Hz – 12.5 kHz | 280 Hz – 12.5 kHz | 250 Hz – 10 kHz |
Sensitivity (1 W, 1 m) | 110 dB | 112 dB | 113 dB |
Rated input (100 V) | 10 W | 15 W | 30 W |
Tappings | 100V line: 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W)
70V line: 500Ω (10W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W), 10kΩ (0.5W) |
100V LINE: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)
70V LINE: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W) |
30 / 15 / 10 / 5 W (70 V)
30 / 15 / 7.5 / 5 / 2.5 W (100 V) |
Operating temperature | -20 °C to +55 °C (must be free from dew condensation) | -20 °C to +55 °C (must be free from dew condensation) | -20 °C to +55 °C (must be free from dew condensation) |
Finish | Aluminium, off-white (RAL 9010 or equivalent) | Aluminium, off-white (RAL 9010 or equivalent) | Aluminium, off-white (RAL 9010 or equivalent) |
Dimensions | 172 x 161 x 188 mm (W x H x D) | 222 x 179 x 234 mm (W x H x D) | 285 x 227 x 277 mm (W x H x D) |
Weight | 1.2 kg | 1.3 kg | 2 kg |
