TOA-PC668RC

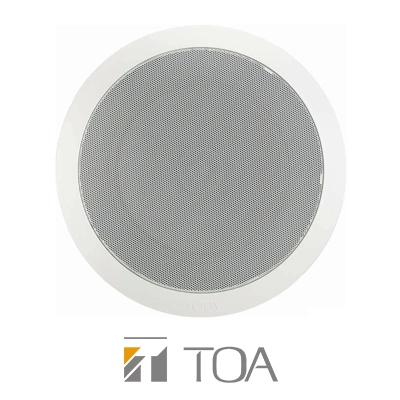

TOA – PC668RC – Speaker – Flush 15 Watt – 100 Volt – 8 Inch Metal Grill – Cutout 250mm

$95.00 RRP Inc GST

Quantity

The TOA PC668RC is a Ceiling Mount Speaker with integrated resin panel and speaker frame. It feature spring clamp mechanism for easy speaker mounting to ceiling. The slim speaker frame design allows it to blend into the interior design of the application easily. Input impedance can be easily adjusted by changing the tap of the transformer. TOA PC668RC, comes with input terminal block which makes cable connection easy when bridging wires.

Rated Input 15 W (100 V, 70 V line)
Impedance Option 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity 96 dB (Pink Noise 500 Hz – 5,000 Hz / 1W, 1m)
Frequency Response 65 Hz – 20,000 Hz (at 20 dB below peak SPL)
Speaker Component 20 cm (8″) double cone-type
Dimensions for Fixing Hole Mounting hole: Φ250±5 mm (Φ9.84″±0.2″)
Ceiling thickness: 5 – 25 mm (0.20″ – 1.98″)
Speaker Mounting Method Spring clamp
Input Connector Push-In Connector (Bridging and branch connection possible)
Finish Panel: Polypropylene resin, traffic white (RAL 9016 equivalent)
Grille: Surface-treated steel plate net, traffic white (RAL 9016 equivalent), paint
Dimensions Φ280 × 90 (D) mm (11.02″ × 3.54″)
Weight 0.97 kg (2.14 lb)
Accessory Paper pattern …1
SKU TOA-PC668RC Categories , , , ,
