Speakers

TOA-HX5B

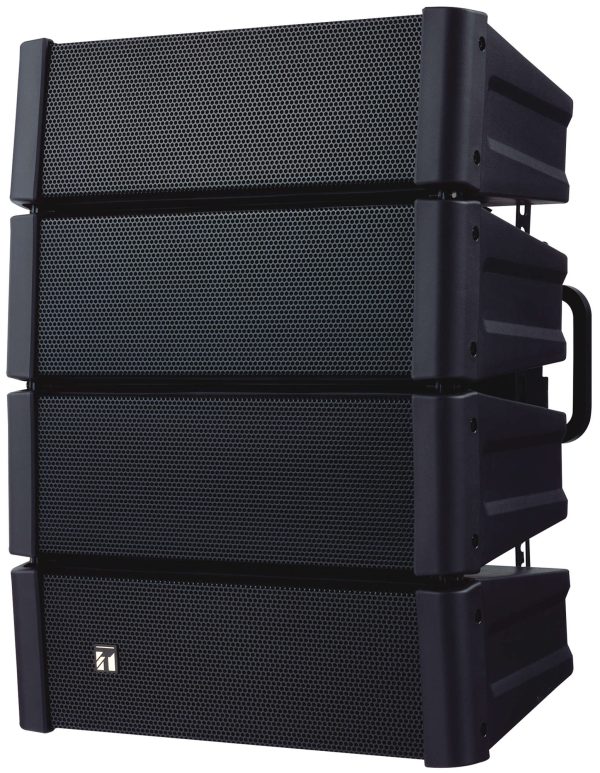

TOA – HX5B – Speaker – Surface 600 Watt Continuous Program – 8 Ohm 70Hz – 20kHz – Black – Per Each

$1,649.00 RRP Inc GST

Enquire Now
Quantity
SKU TOA-HX5B Categories , , , ,

The HX-5B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5B is designed for indoor use.

  • Power handling: 600W Continuous Program@8 ohms
  • One module is composed of 1 x 4.72” cone-type LF driver and 3 x 1” balanced dome tweeters
  • Adjustable dispersion angle 15°, 30°, 45° and 60°
  • Maximum four speaker units can be stacked
Enclosure
Bass-reflex type
Power Consumption
Continuous pink noise: 200 W, Continuous program: 600 W
Impedance
8 Ω
Sensitivity
96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode)
Frequency Response
70 Hz – 20 kHz (-10 dB) (60° mode), 75 Hz – 20 kHz (-10 dB) (45° mode),
80 Hz – 20 kHz (-10 dB) (30° mode), 85 Hz – 20 kHz (-10 dB) (15° mode)
Crossover Frequency
4 kHz
Directivity Angle
Horizontal: 100° (over 2,000 Hz)
Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz), 30° (over 1.6 kHz), 15° (over 3.2 kHz) variabe
Speaker Component
Low frequency: 12 cm cone-type x 4, High frequency: Balanced dome-type x 12
Input Terminal
Speakon NL4MP x 2 and M4 screw terminal
Finish
Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black
Dimensions
408 (W) x 546 (H) x 342 (D) mm
Weight
16 kg
Included Accessories
Hanging bracket x 2, Hex. wrench x 1
Optional Accessories
Matching transformer : MT-200
Speaker mounting bracket: HY-PF1B, HY-CW1B, HY-WM1B, HY-WM2B, HY-CN1B
Speaker stand adapter: HY-ST1
