TOA-BS1015BSW

$499.00 MSRP inc.GST

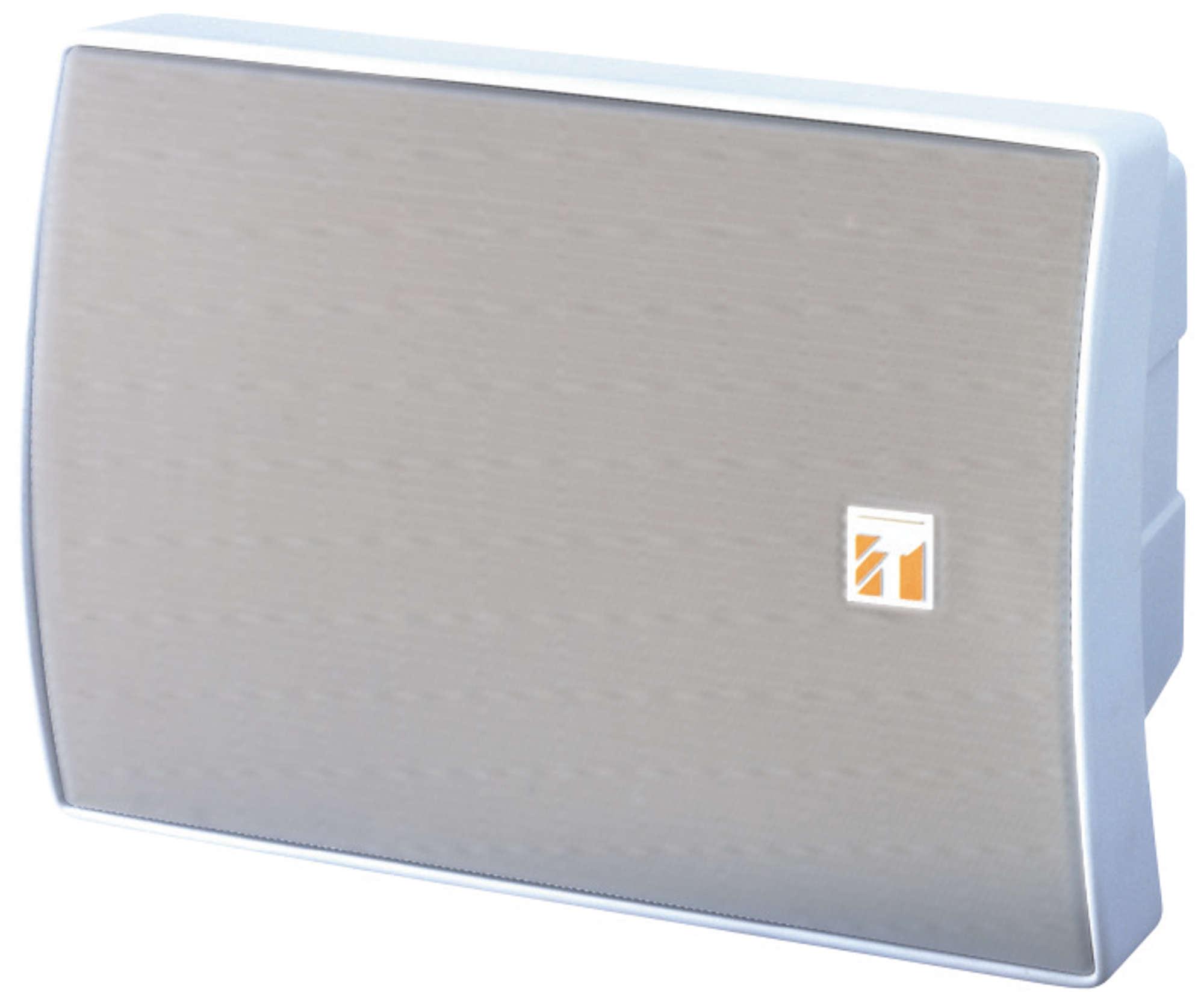

TOA – BS1015BSW – Speaker – Surface 15 Watt – 100 Volt – ISO 7240.24 White

The BS-1015BSW is the voice alarm certification product. 2 way speaker system is suitable for announcement and music use in wide frequency range. Speaker design that harmonize with the venue’s architecture and decor.
Specifications
BS-1015BSW BS-1015BSB BS-1034EN
Frequency response 80 Hz – 20 kHz 80 Hz – 20 kHz 120 Hz – 20 kHz
Connection Ceramic screw terminals, thermal fuse Ceramic screw terminals, thermal fuse Ceramic screw terminals, thermal fuse, mounting bracket includes screw terminal
Sensitivity (1 W, 1 m) 90 dB 90 dB 89 dB
Speaker component Low: 5″ cone-type High balanced dome tweeter Low: 5″ cone-type High balanced dome tweeter Low: 5″ cone-type High balanced dome tweeter
Directivity angle horizontal 220 ° 220 °
Directivity angle vertical 330 ° 330 °
Rated input 15 W, 7.5 W 15 W, 7.5 W 10 W
Tappings 15 / 10 / 5 W (100 V),
7.5 / 5 / 2.5 W (70 V)
15 / 10 / 5 W (100 V),
7.5 / 5 / 2.5 W (70 V)
10 / 5 / 3 / 1 W (100 V),
10 / 5 / 2.5 / 1.5 / 0.5 W (70 V)
Rated impedance 70 V, 100 V 70 V, 100 V 70 V, 100 V
Operating temperature -10°C to +50°C -10°C to +50°C
Finish ABS resin, paint, off-white (RAL 9011 or equivalent) ABS resin, paint,  black (RAL 9010 or equivalent) HIPS resin, off-white (RAL 9010 or equivalent)
Weight 2.4 kg 2.4 kg 1.4 kg

TOA-BS1015BSB – Instruction manual

TOA-BS1015BSB Data Sheet

TOA-BS1015BSB Product Brochure
