Speakers

TAN-CMS801SUBPR

Tannoy – CMS801SUBPAIR

$1,599.00 RRP Inc GST

Quantity

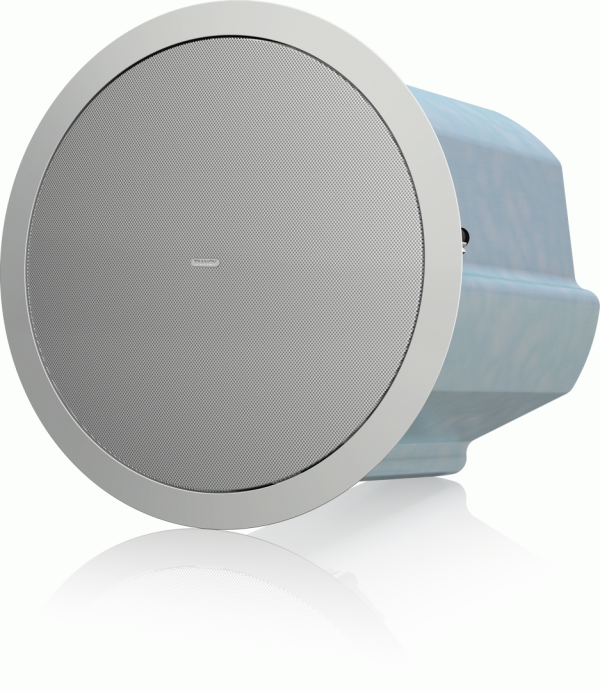

8″ Compact Ceiling-Mounted Subwoofer for Installation Applications (Pre-Install)

Product Features
  • Compact ceiling subwoofer for installation applications
  • 100 Watts continuous, 400 Watts peak power
  • 8″ long excursion driver for greater low frequency response
  • Pre-install version supplied without back can (available separately)
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input when used with the optional CMS 801 OHM PI BACKCAN
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Low insertion loss 60 W line transformer with easily accessible tapping switch. Note that the transformer is mounted in optional CMS 801 PI 8 OHM BACKCAN
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable grille for custom painting
  • Self-aligning 5 way clamp mounting system
  • Mounting C-ring and ceiling tile rails included
CMS 801 SUB PI
CMS 801 SUB PI

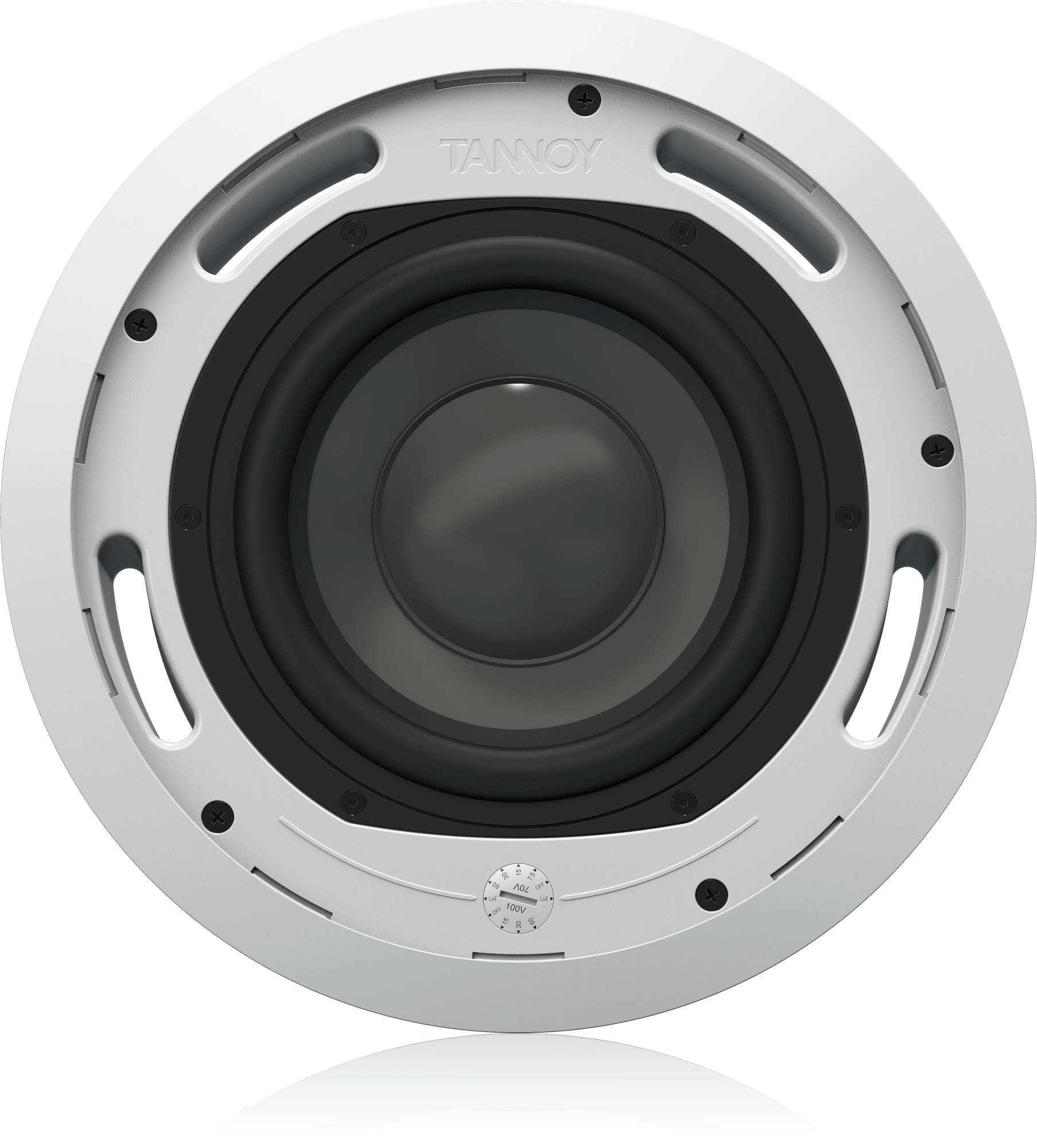

The CMS 801 SUB PI is a compact 400- Watt subwoofer that complements the entire range of CMS ceiling monitor systems. Thanks to a powerful 8″ long excursion LF driver, the UL certified CMS 801 SUB PI delivers dynamic low frequency extension and premium grade audio for music and speech reinforcement applications.

Optimised for Installation
Optimised for Installation

Specifically designed with a self-aligning 5 way clamp system for fast, simple and cost effective installation, CMS 801 SUB PI features removable locking screw terminal connector with loop-thru functionality. A convenient front panel tap switch for controlling the 60 W transformer mounted un the optional CMS 801 PI 8 OHM BACKCAN, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. A back can and plaster (mud) ring are available separately.

LAB GRUPPEN Ready
LAB GRUPPEN Ready

The CMS 801 SUB PI is finished in semi matt white and optimised for use with LAB GRUPPEN amplifiers.

Specification
System
Frequency response (-3 dB) <sup>(1)</sup> 58 Hz – 160 Hz
Frequency range (-10 dB) <sup>(1)</sup> 42 Hz – 300 Hz
System sensitivity (1 W @ 1 m) <sup>(2)</sup> 92 dB (1 W = 2.45 V for 8 Ohms)
Rated maximum SPL <sup>(2)</sup> 112 dB (average) 118 dB (peak)
With THP60 110 dB (average)
Power handling <sup>(3)</sup>
Transformer taps (via front rotary switch)
Transducers
Low frequency / High frequency 1x 200 mm (8.00″) long throw woofer with multi fibre paper pulp cone
Enclosure
Backcan Options
Safety agency ratings (pending) UL-1480, UL-2043, CE
PI hole cutout diameter 295 mm (11.61″)
Dimensions
Bezel diameter 325 mm (12.80″)
Back of ceiling surface to rear of back can (PI) 151.2 mm (5.95″)
Back of ceiling surface to top of safety loop (PI) 168.5 mm (6.63″)
Front of ceiling to rear of bass ports (no back can) PI 123.7 mm (4.87″)
Net Weight (ea)
Included Accessories C Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories Plaster (Mud) Ring
Ordering Information
Model name CMS 801 SUB PI
Baffle / Grille Colour WHITE
Packed Quantity 2
Packed weight kg (lbs) 12.2 (26.84)

(1) Average over stated bandwidth. Measured in an IEC baffle in an Anechoic Chamber
(2) Unweighted pink noise input, measured in an IEC baffle in an Anechoic Chamber. If the loudspeaker is placed in the ceiling near a corner ( /2) an increase of 6 dB in sensitivity and maximum SPL can be realised.
(3) Long term power handling capacity as defined in EIA – 426B test A full range of measurements, performance data, and Ease™ Data can be downloaded from tannoy.com

TANNOY operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which TANNOY reserves the right to alter without prior notice.
Please verify the latest specifications when dealing with critical applications.
