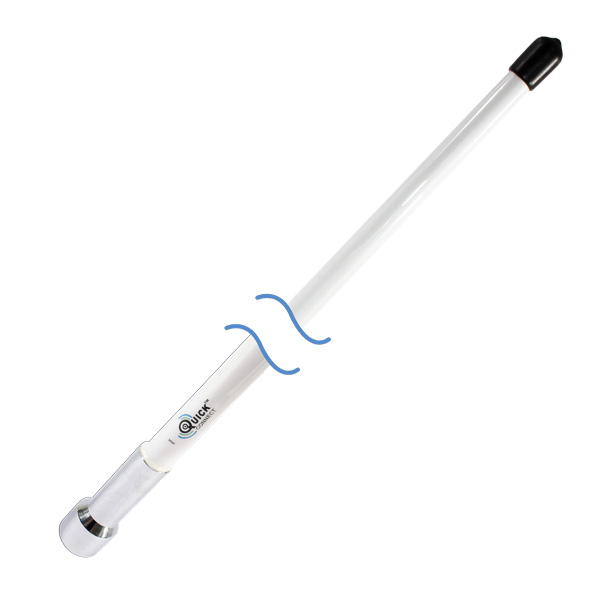

QuickConnect™ VHF Antenna

QuickConnect™ antennas stem from the popularity of the quick-connecting feature on Shakespeare®’s high-end Phase III marine antennas. The QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.

• QuickConnect™ system provides screw or unscrew features to quickly disconnect or connect antenna
• High-quality connection generates no noise caused by vibrations
• Splash protection cap protects the connector on the mount when antenna is disconnected
• PL-259 Connector is an easy crimp-on type of connector
• Base connector included for use with QuickConnect™ mounts only
• Single section antennas with a VSWR of <1.5:1 at 156.8 MHz
• Maximum input power of 50 watts
• Bandwidth of 5 MHz within 2.0:1 VSWR
• Does not contain a built-in DC ground connection (read open)
• 2-year warranty
• Models:
  • QC-3
  • QC-4
  • QC-8

Part Specifications:

3dB 1.2m, white fibreglass, Chrome ferrule. For use with QC mount series
