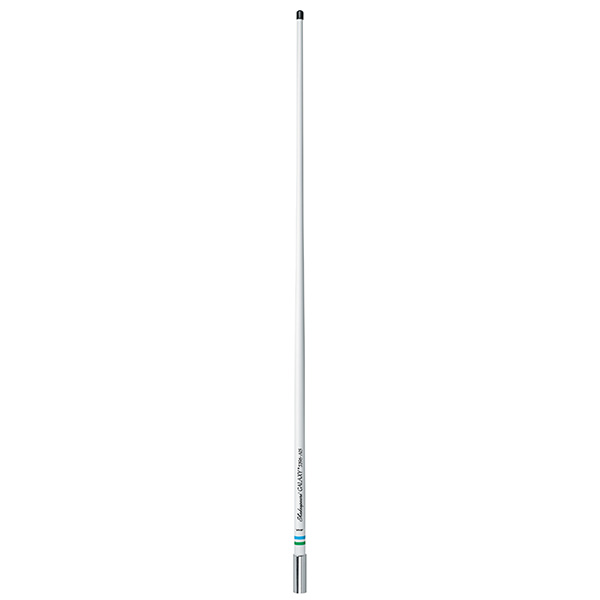

Galaxy® AIS Antenna

Cruise with confidence and communicate reliably over the AIS band using the Galaxy® AIS antennas. Specifically designed and tuned to work with all popular AIS transceivers, this antenna features a commercial-grade fiberglass construction to ensure performance and durability. These benefits combined with the great look of our Galaxy® high-gloss white finish signifies a standard of quality to be admired.

• Thick brass and copper elements provide greater range, clarity, and efficiency
• Stainless steel ferrule prevents rust
• 20’ RG-8/X low-loss cable plus a solder free screw-on PL-259 connector included for easy installation
• High-gloss polyurethane finish prevents yellowing
• Antennas come in a single section with a built-in DC connection
• VSWR of <1.5:1 at 162 MHz
• 5-year warranty
• Models:
  • 5225-XT-AIS
  • 5396-AIS

Part Specifications:

3dB, 1.2m Galaxy® white AIS antenna. 1″-14 SS ferrule, 6m RG8X cable + PL259

Suggested Mount: 4187 or 4188-SL

Max. Input Power: 50W

Bandwidth: 5 MHz within 2.0:1 VSWR

Matching Antenna:  5400-XT
