Shakespeare

SHA-SP-5309-R

Shakespeare – SP-5309-R

$1,845.00 RRP Inc GST

Quantity

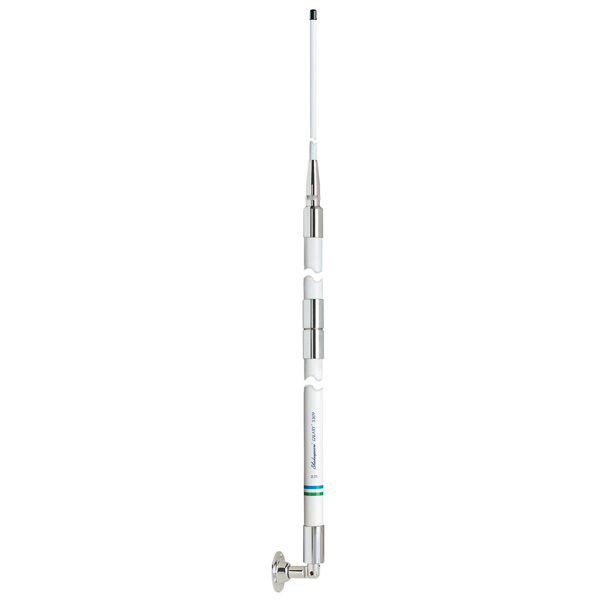

Galaxy® VHF Antenna

Galaxy® antennas have long been revered as the industry standard for both performance and quality. Following a 20-plus year tradition, Shakespeare® Galaxy® antennas ensure reliable communication through high-quality materials and master craftsmanship with each and every antenna.

  • Thick brass and copper elements provide greater range, clarity, and efficiency
  • Stainless steel ferrule prevents rust
  • 20’ RG-8/X low-loss cable plus a solder free screw-on PL-259 connector included for easy installation
  • High-gloss polyurethane finish prevents yellowing
  • VSWR of <1.5:1 at 156.8 MHz
  • Bandwidth of 3 MHz within 2.0:1 VSWR
  • White/Fiberglass and Black/Fiberglass finishes*
  • 5-year warranty
  • Models:
    • 5018
    • 5225-XT
    • 5226-XT*
    • 5230
    • 5309-R
    • 5400-XT (does not include Easy Route hardware – must use the solder-style PL-259)
    • 5401-XT*

Part Specifications:

9dB 7.0m, Galaxy® white, 2 sections, brass & copper collinear phased 1/2 wave elements, 1″-14 SS ferrule, 6m RG8X + PL259

Suggested Mounts: 410-R

Dc Ground: No – Read Open

Max. Input power: 150W
