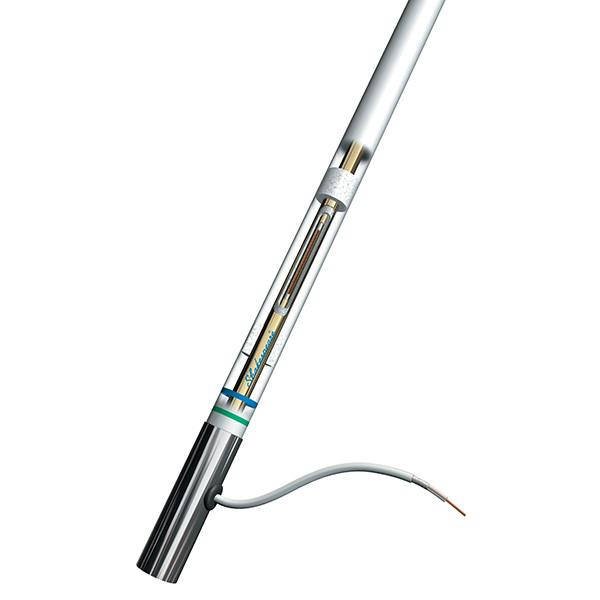

Galaxy® VHF Antenna

Galaxy® antennas have long been revered as the industry standard for both performance and quality. Following a 20-plus year tradition, Shakespeare® Galaxy® antennas ensure reliable communication through high-quality materials and master craftsmanship with each and every antenna.

• Thick brass and copper elements provide greater range, clarity, and efficiency
• Stainless steel ferrule prevents rust
• 20’ RG-8/X low-loss cable plus a solder free screw-on PL-259 connector included for easy installation
• High-gloss polyurethane finish prevents yellowing
• VSWR of <1.5:1 at 156.8 MHz
• Bandwidth of 3 MHz within 2.0:1 VSWR
• White/Fiberglass and Black/Fiberglass finishes*
• 5-year warranty
• Models:
  • 5018
  • 5225-XT
  • 5226-XT*
  • 5230
  • 5309-R
  • 5400-XT (does not include Easy Route hardware – must use the solder-style PL-259)
  • 5401-XT*

Part Specifications:

6dB 2.4m, Galaxy® white fibreglass, brass & copper elements, collinear phased, 1″-14 SS ferrule, 6m RG8X + PL259

Suggested Mount: 4187-HD or 5187

Max. Input Power: 100W

DC Ground: Yes – Read Shorted

Matching Antenna:  5225- XT-AIS
