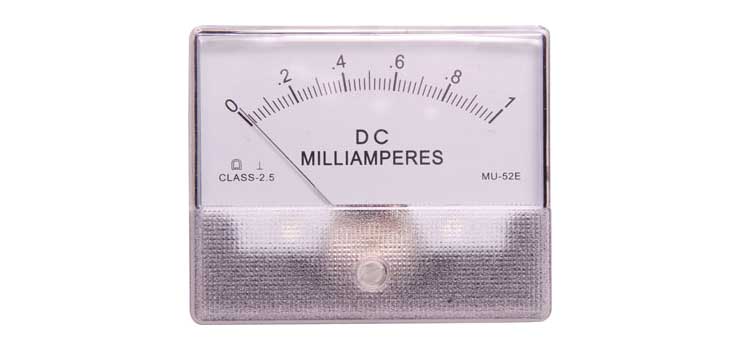

RED-Q0530

Quality Class 2.5 MU 52 E Overall dimensions 80W x 66H. Bolt mounting centres 64W x 48H. 52mm hole required. Connections via threaded nut inserts on rear panel. Nuts and washers provided.
FSD: 1mA
Resistance: 210 ohm

Dimensions
A: 52 B: 4 C: 48 D: 64
*Specifications subject to change without prior notice. All dimensions in mm
