RED-DA0901

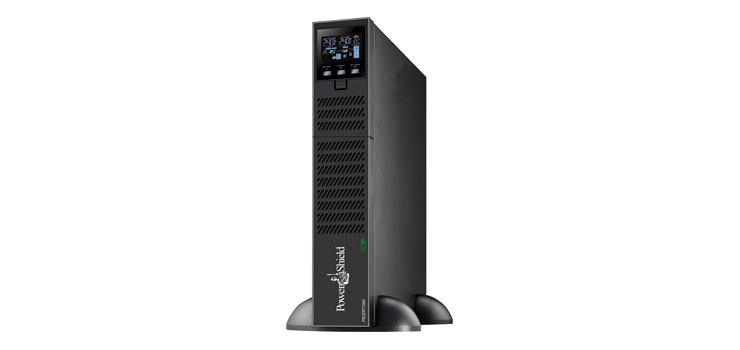

The PowerShield PSCERT1000 is a true online double conversion UPS with the highest single phase power density in the PowerShield UPS range. Boasting an output power factor of 0.9, this will fully protect mission critical devices as it can support larger loads than UPS products of an equal VA rating.

The Centurion RT has an energy saving Advanced ECO mode, which allows the unit to operate at very high efficiency, up to 98%. When the utility mains input voltage is within the ECO range the UPS saves energy by passing the mains supply directly through to the load, while the inverter continues to operate in a passive mode.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features
True Online Double Conversion
Wide input voltage range (110-300 VAC)
Input power factor correction 0.98
50Hz/60Hz frequency converter mode
Programmable power outlets
Emergency power off function (EPO)
Eco-mode operation for energy saving (ECO)
Generator compatible
Backup time for all models is easily extended by simply plugging additional battery banks
Charger capacity expansion to 8A for long-run models
USB+RS232 + SNMP + AS400 multiple communications
Maintenance Bypass Switch available

Specifications
Capacity: 1000VA/800W
Voltage range:
-Low line transfer: 160VAC/140VAC/120VAC/110VAC ± 5 %,
( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
– Low line comeback: 175VAC ±5%
– High line transfer: 300VAC ±5%
– High line comeback: 290VAC ±5%
Frequency Range: 47.5Hz – 52.5Hz or 57Hz – 63Hz
Phase: Single phase with ground
Power factor: ≥0.98
Output:
Voltage (selectable): 240VAC (Selectable 208, 220, 230VAC)
AC Voltage regulation (Battery mode): ±3%
Frequency range (Synchronised range): 47Hz – 53Hz or 57Hz – 63Hz
Frequency range (Battery mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
Current Crest Ratio: 3:1
Harmonic Distortion: ≤3% THD (linear load), ≤6% THD (non linear load)
Transfer time:
– AC mode to battery mode: Zero
– Inverter to bypass: 4ms (typical)
Waveform: Pure Sine wave
Efficiency:
AC Mode: 85%
Battery mode: 83%
Battery:
Battery type: 12V 9Ah
Quantity: 3pcs
Typical recharge time: 4 hours recover to 90% capacity
Charging current (max): 1.0A
Charging voltage: 41.0VDC ±1%
Indicators:
LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Alarms:
Battery mode: Sounding every 4 seconds
Low battery: Sounding every second
Overload: Sounding twice every second
Fault: Continuously sounding
Physical:
Dimensions: 420D x 438W x 88H 2RU mm
UPS Net weight: 16kg
Environment:
Operational humidity: 20-90 % RH @ 0- 40°C (non-condensing)
Noise: Less than 45dBA @ 1 Meter
Management:
Smart RS232, USB: PowerShield NetGuard® Software – Supports Windows Based Operating Systems, Linux & Unix
