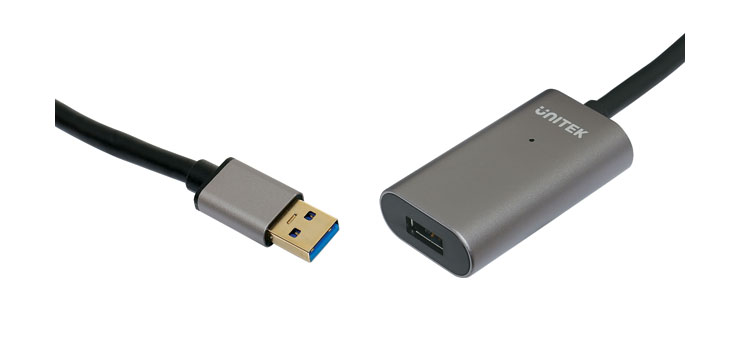

USB 3.0 Active Extension Cable 5m

Description

A USB 3.0 active extension cable designed to achieve distances up to 5m with high speed 4.8Gbps USB 3.0 connection. Ideal for connecting USB 3.0 peripherals such as external drives in server racks etc, where 3m USB 3.0 leads may not be long enough. Up to three units can be daisy chained together for a maximum length of 15m.

For high current USB bus requirements users can add our recommended plug pack with a 1.35mm Plug Adapter (both are listed in accessories below). Powered via USB bus but has provision for a plug pack should a device have insufficient current.

Features

• Design with aluminum housing, stronger and durable.
• Built-in USB3.0 extension chipset for extending the transmission distance.
• With USB3.0 specification, data transfer speed up to 5Gbps. Backward compatible with USB2.0/1.1.
• Gold-plated connector, effectively stabilizes the transmission signal.
• Premium USB cable.
• Can connect to an external power supply to enhance the performance of the extension cable.
• Plug and play, no need to install driver.

Information

I/N: 16584
Barcode: 9321758247488
Shipping Weight: 0.34800Kg
Packaging Sizes
EACH: 1
CARTON: 40

Specifications

• • Housing: Aluminium
  • Product Dimension: 57 x 33 x 15 (mm)
  • Upstream: 1 x USB3.0 Type-A Male
  • Downstream: 1 x USB3.0 Type-A Female
  • DC Dimension: 3.5 x 1.35 (mm)
  • Cable OD: 6.0 (mm), Length: 5 (m)

*Specifications are subject to change without notice.
