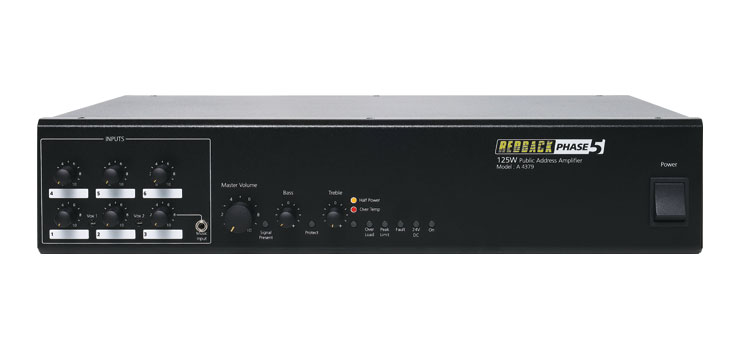

RED-A4379

Designed for applications requiring up to six microphone inputs, without compromising output power and overall performance. Each model features inputs which can be configured for either microphone or line level operation. Bass/treble controls, phantom powering and adjustable input sensitivity enable unparalleled flexibility for a wide scope of applications such as factories, workshops, mine sites, sports clubs and office buildings.

Features
6 Balanced microphone inputs / 6 Aux inputs / 1 Music input
Robust design incorporating latest Mosfet technology
Very Low noise and distortion
100V standard with optional 70V and 4-16Ω outputs
240V AC or 24V DC operation
VOX muting on inputs 1 and 2 (Switch selectable internally)
Adjustable VOX level sensitivities
Bass and Treble controls
Tape Output
Phantom power on microphone inputs (DIP switch selectable internally)
Multi stage thermally cued fan cooling
Output Peak Limited
Thermal Overload protected
Signal Presence Indicator
Half power mode when overdriven
Fault Indicators
24V DC Power Status Indicator
Optional Alert/Evac module with voice over message for emergency tones (A 4573)
Optional remote volume (With A 4373 Digital volume control module fitted and external A 2280B wall plate)
Rack Mountable (suits 19 inch racks) with optional A 4376 rack ears
