RED-A3166

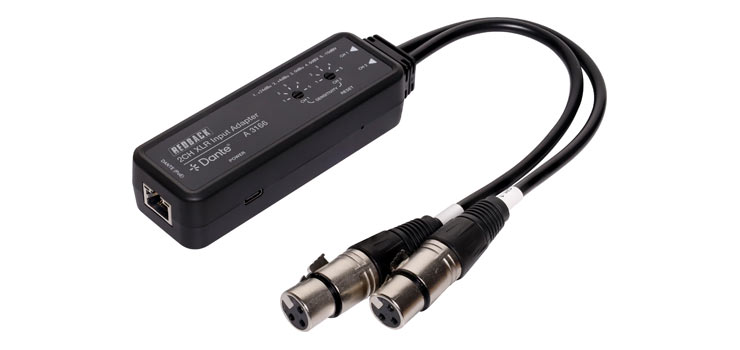

Redback – A 3166 – Audio Over IP Receiver – Dante – PoE 2 x Channel – XLR Female

$285.00 RRP Inc GST

Quantity
SKU RED-A3166 Categories , , , ,

This Dante 2CH XLR Input Adapter is an audio transmitter based on the Dante Ultimo 2×2 solution. It converts two-channel balanced/unbalanced XLR analog audio into Dante 2CH digital audio, then transmits the audio to the receiving end through network (Dante). Analog audio input supports 5-level sensitivity adjustment. The adapter supports local USB-C port power supply and PoE function.

Features

  • Two-channel XLR analog audio to Dante 2CH digital audio
  • Balanced/unbalanced XLR analog audio input
  • Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
  • Dante audio delay supports 1/2/5ms (configurable)
  • Analog audio input supports 5-level sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
  • Compatible with AES67 input and output.
  • Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
  • Compact design for easy and flexible installation

 Information & Downloads

  • Altronics Code: A3166
  • I/N: 18737
  • Barcode: 9321758261682
  • Shipping Weight: 0.35000Kg
  •  Packaging Sizes
  • EACH: 1
  • CARTON: 30
  •  Large Image 1
  •  Large Image 2

 Specifications

    • Technical:
    • Input: Two-channel balanced/unbalanced XLR analog audio
    • Output: Dante 2CH digital audio
    • Control Method: Dante Controller
    • Video Network Bandwidth: 100M
    • Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
    • Audio Formats: XLR IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu] DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]
    • Transmission Distance: 100m (CAT6/6A/7)
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
    • Audio Parameters:
    • XLR Analog Audio In
    • Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
    • Line Input Level (Maximum): +24dBu (12.28Vrms) @balanced audio, +18dBu (6.15Vrms) @unbalanced audio
    • Frequency Response: 20Hz to 20kHz (-/+0.5dB)
    • Dynamic Range: >100dB@0dBu, 1kHzA-weighted
    • Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
    • Audio THD+N: < 0.01% at +4dBu, 1KHz
    • Audio Output Sync Delay: <10ms
    • Connection:
    • Input port: 2x CH1/CH2 XLR IN [XLR female plug, with 30cm cable], 1x POWER [USB-C power and firmware update port, 12-pin female]
    • Output port: 1x DANTE [RJ45 connector, PoE]
    • Others: 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch]
    • Mechanical:
    • Housing: Plastic Enclosure
    • Colour: Black
    • Dimensions: 115mm [W] x 40mm [D] x 28 mm [H]
    • Weight: 173g
    • Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
    • Power Consumption: 2W (Max)
    • Operating Temperature: 0°C ~ 40°C
    • Storage temperature: -20°C ~ 60°C
    • Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
    • Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)

*Specifications are subject to change without notice.
