RED-A3138

HDMI Over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920×1200@ 60Hz YCbCr 4:4:4. It also supports HDMI loop output on transmitter.

HDMI over IP Extender requires two units: Transmitter and Receiver (sold separately).

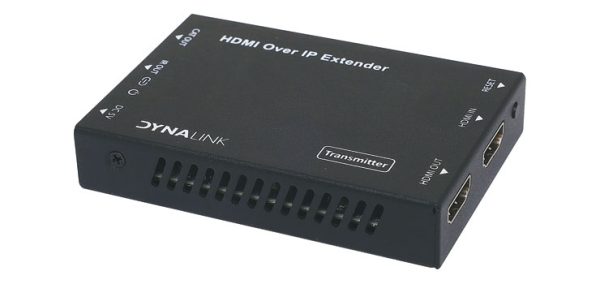

The Transmitter (A3138A) is responsible for obtaining HDMI signals for encoding, transmitting via CAT 5e / 6 cables. It supports HDMI loop output.

The Receiver (A3139A – see accessories listed below) is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single Cat5e/6 cable and is the perfect solution for any application.

Box Contents
1x HDMI over IP Extender(Transmitter)
1x 20-60KHz IR Receiver cable (1.5m)
1x 5V/1A Power Adapters
1x User Manual

Features

• HDCP 1.4 compliant
• Supports 6.75Gbps video bandwidth
• Video resolution is up to 1920×1200@60Hz YCbCr 4:4:4
• Extend distance up to 150m between encoder and decoder via Cat5e/6 cable
• Adopts Standard H.265 encoding/decoding
• Supports 1G standard IP switcher / router / hub
• Supports one-way IR control signal transmission
• Compact design for easy and flexible installation
