• • Source Input
  • Input Channel: 1
  • Video: HDMI
  • Video System: 480i/p, 576i/p, 720p, 1080i/p
  • Audio System: HDMI
  • Compression
  • Video: H.264 Baseline Profile Level4.0
  • Video Resolution: 1080p 25 / 30 Max
  • Video Bit Rate: 12Mbps MAX
  • Audio: MPEG-2 / AAC
  • Audio Bit Rate: 192 Kbit/S
  • DVB insertion tables: SDT, NIT
  • Editable Field: Service Name , Network Name , Provider Name , TS ID , Network ID , Original NET ID, LCN , NIT Version , Private Data ,Country
  • RF Output
  • Type: 1 Multiplex DVBT with a digital TV service
  • Frequency: 177 – 858 MHz
  • MER: 30dB Typically
  • Output Level: 100dBuV ±5
  • RF Level Adj: 0dB~20dB
  • Attenuation Step: 1dB per step
  • Connections
  • HDMI IN: HDMI IN
  • HDMI OUT: HDMI Pass Through
  • RF Output: RF output (providing accessory power supply 9 volts DC for IR pass)
  • DC Switch: Power supply 9 volts DC for IR Pass
  • RF Input: RF Combiner
  • USB: Firmware Upgrade
  • IR Out: IR Emitter Output
  • Modulation: Standard: DVBT (ETSI EN 300 744)
  • Constellation: QPSK, 16QAM, 64QAM
  • Guard Interval: 1/4, 1/8, 1/16, 1/32
  • Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
  • FFT Carriers Mode: 2K, 8K
  • Bandwidth: 6MHz, 7MHz, 8MHz, 7-8MHz
  • Power Supply: 12V Adapter

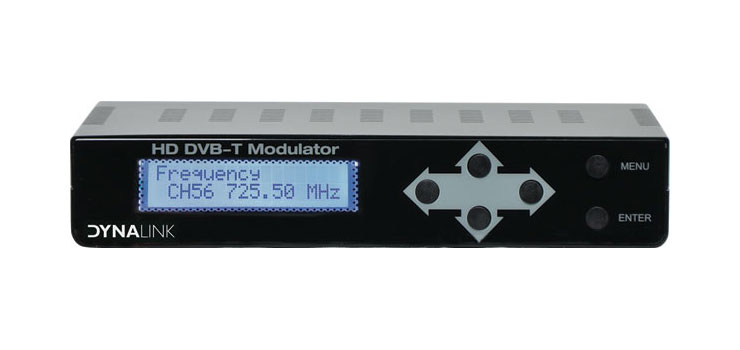

  • Display: LCD panel @ 2 x 16 characters (on front panel).
  • Environmental for operating: Temperature range: 5°C – 40°C, Relative Humidity: 80% @ 30°C
  • IR Receiving Eye
  • Freq. range: 100 -900 MHz
  • Insertion loss: 3.0dB Typical
  • Return path signal freq: 7.0MHz
  • IR freq.: 20-60KHz
  • Impedance: 75ohm
  • Power Consumption: 9mA

*Specifications are subject to change without notice.
