Audio Tools & Processors

RAD-HOTSHOT-ABO

RADIAL – HOTSHOT-ABO – Mic & Line Switcher. 1 XLR Female Input & 2x XLR Male Outputs. Balanced.

$249.00 RRP Inc GST

Quantity

Footswitch Selector for Balanced Outputs

The HotShot ABo is a latching footswitch that will take a balanced input on stage and switch it between two different destinations, without requiring any power to operate.

Photos
  • Redirect a balanced signal to two different destinations
  • Toggle outputs or mute with a latching footswitch
  • Selectable output pads to match signal levels
  • Completely passive operation, no power required

Reroute signals on stage

The Hotshot ABo takes a balanced XLR input and provides the ability to switch the signal between two destinations using a passive footswitch on stage. This makes it ideal for a variety of applications, including driving two channels on a mixing console for dry and wet effects routing, diverting a dynamic mic from the PA system to the monitors or an intercom system, or for temporarily muting the signal when coughing. The ABo uses a latching footswitch, so it will stay on the last output selected until you hit the footswitch again.

HotShot ABo Applications

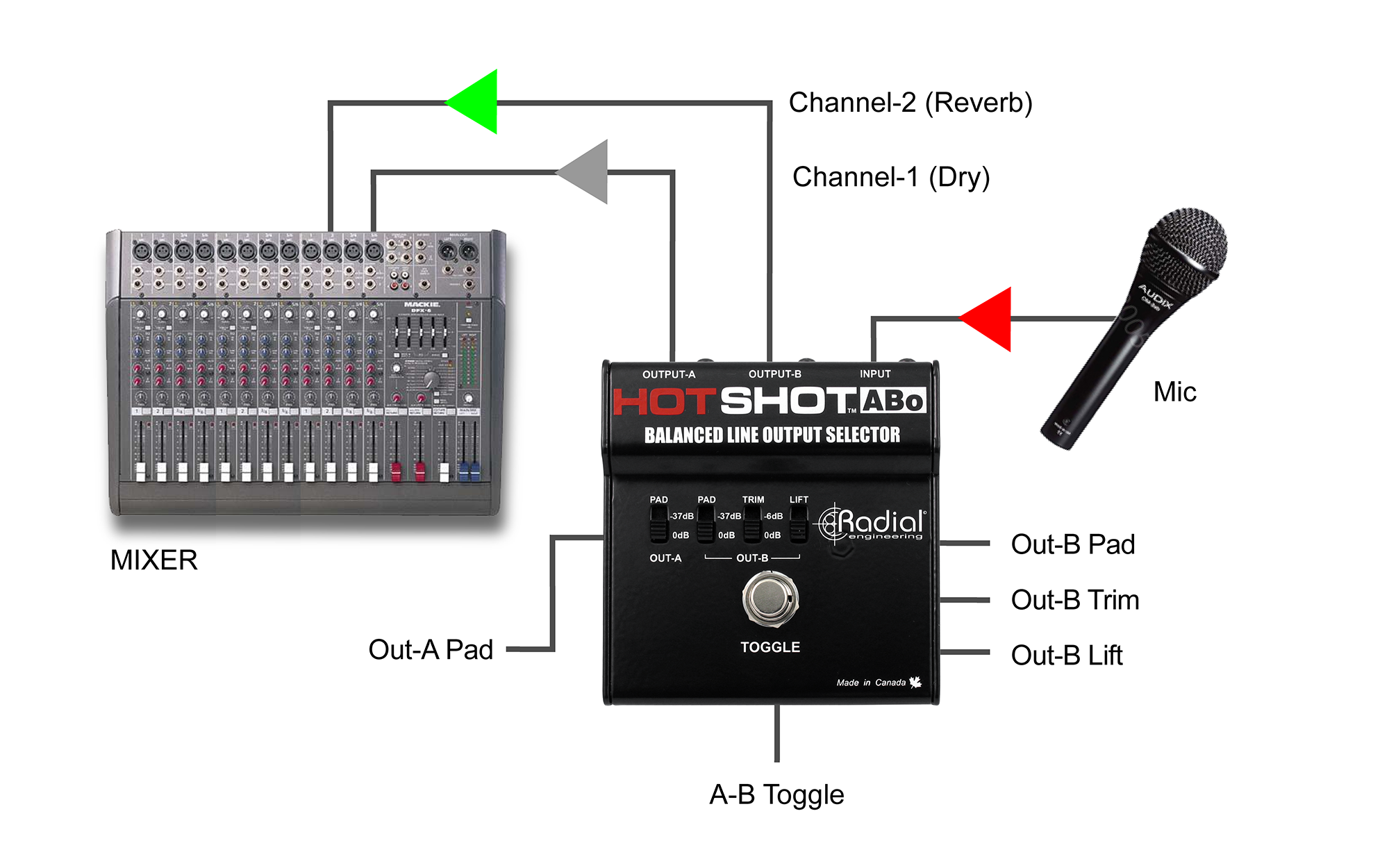

Using the HotShot ABo for wet & dry vocals

Imagine being able to control extra echo or reverb when you are singing on stage! Simply connect your mic to the ABo input and then send the outputs to two separate channels on your mixer. Set one to dry and one to wet. You are now an audio engineer!

Using ABo to communicate to band on stage

With in-ear monitors, speaking to band members is impossible. The ABo makes it easy! Connect your mic to the ABo with output-A to your normal vocal channel. Use output-B to feed the in-ear monitor system and you can now chat with your friends all gig long!

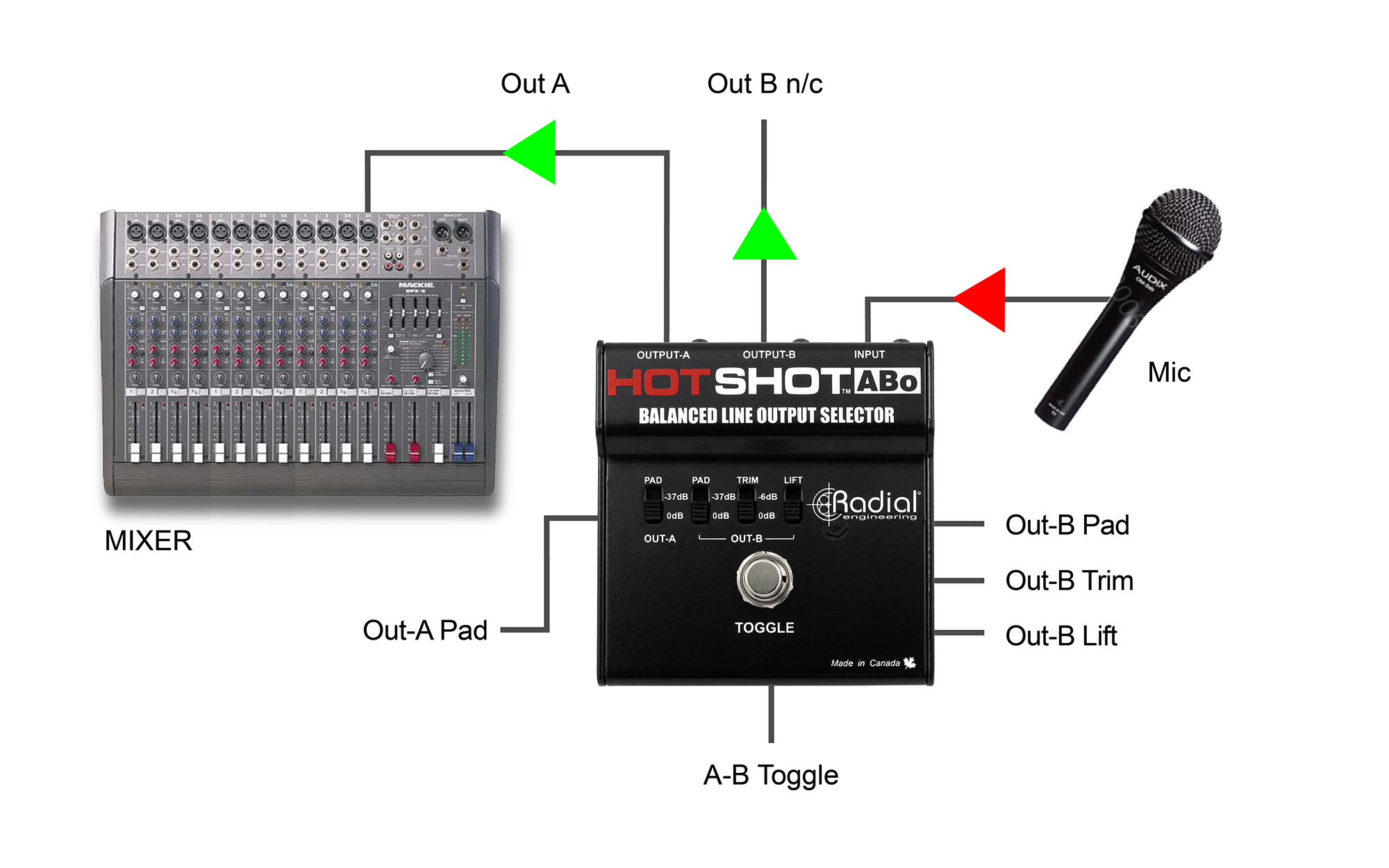

Using the ABo as a mute for coughing

Muting a microphone on stage can reduce feedback. It can also help embarrassing situations such as letting you mute a mic when you need to cough. Simple plug into the ABo input and send the output-A to your mixer. Toggle the footswitch to mute.

SKU RAD-HOTSHOT-ABO Categories , , ,
