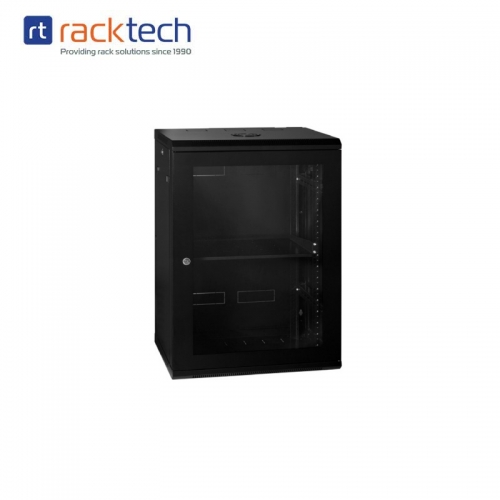

RAC-WRH6624

The WR Series wall mounted cabinets are built to the highest standards
with flexibility and ease of installation at the forefront of design criteria.
More than 30 different size and door variants makes the WR Series one of
the most comprehensive in the market.
The fully welded frame ensures a stable structure while the key lockable
quick release door opens to 180 degrees and are available in Acrylic,
Curved Perforated or Steel.

CABINET DIMENSION: 1170H x 600W x 700D (incl. rear hinge)
REAR HINGE SECTION: 1170H x 600W x 100D
COLOUR: Black
WEIGHT: 46kg
SHIPPING DIMENSION: 1210H x 640W x 740D
SHIPPING WEIGHT: 49kg
DESCRIPTION: WRH Cabinet – 24RU 600W 700D
Acrylic Door

FEATURES
Fully welded frame ensures stable structure
Quick release door hinges
Reversible Doors open to 180 degrees with quick release hinge
Acrylic front door
Doors flush with frame, Curved Perforated door protrudes 50mm
70% Perforation on perforated doors
19” depth adjustable mounting rail
Side panels fitted with round locks are easy to fit and remove
Top and bottom panel with multiple cable entry knockouts
Rear panel with multiple cable entry knockouts
Rear hinge section left or right side
Rear hinge section key lockable
Rear hinge section has 19” provisions

STANDARD INCLUSIONS
The WR Series wall mounted cabinets are built to the highest standards
with flexibility and ease of installation at the forefront of design criteria.
More than 30 different size and door variants makes the WR Series one of
the most comprehensive in the market.
The fully welded frame ensures a stable structure while the key lockable
quick release door opens to 180 degrees and are available in Acrylic,
Curved Perforated or Steel.
* Image for illustration purpose only
1 x Cantilever Shelf (1RU 300 depth cantilever)
Key lock on front door
Key locks on removable side panels
Cable entry knockouts top, bottom and rear
Fan vents in top
Front & rear 19″ mounting rails with RU marking
Earthstud
25 cage nuts and screw
Rear panel section supplied with hinges
