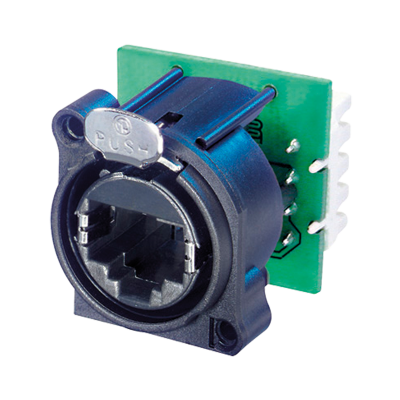

NE8FAV-YK

Panel mount RJ45 receptacle with IDC terminals, A-Series cutout with latch lock, max. panel thickness 3 mm. Mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

FEATURES & BENEFITS

• Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
• Approved latch lock system
• Most space saving and cost effective design
• Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
• Selectable ground – panel connection
• Easy and quick mounting using Krone punch down terminals
